Product Description

Loudspeaker 53mm YD53-03-8N18.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD53-03-8N18.5P-R

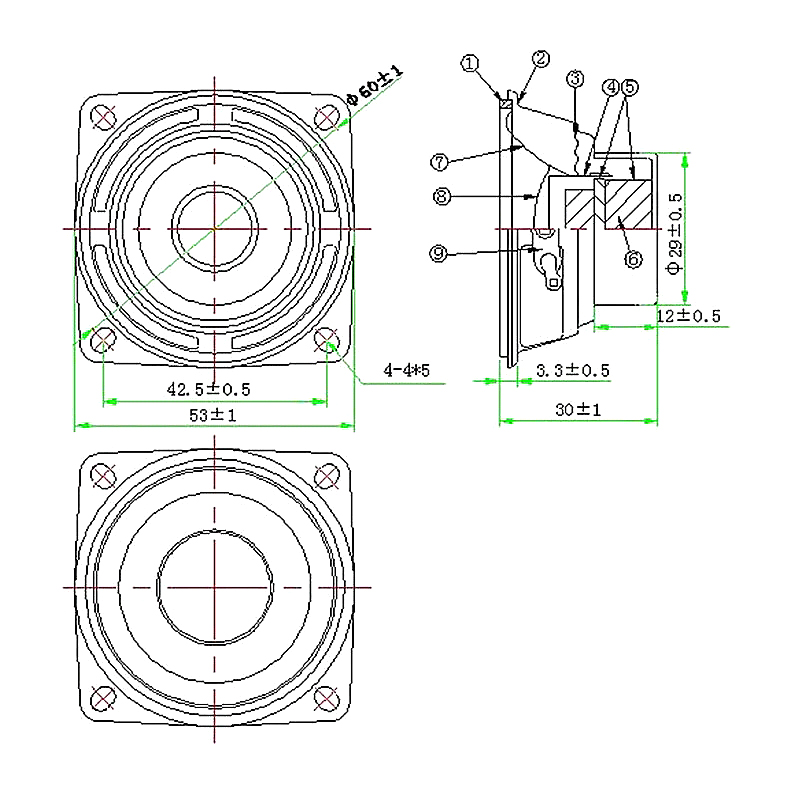

Dimension:53*53*30H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ20.4mm  KSV+Cu
Fo:180±20%Hz

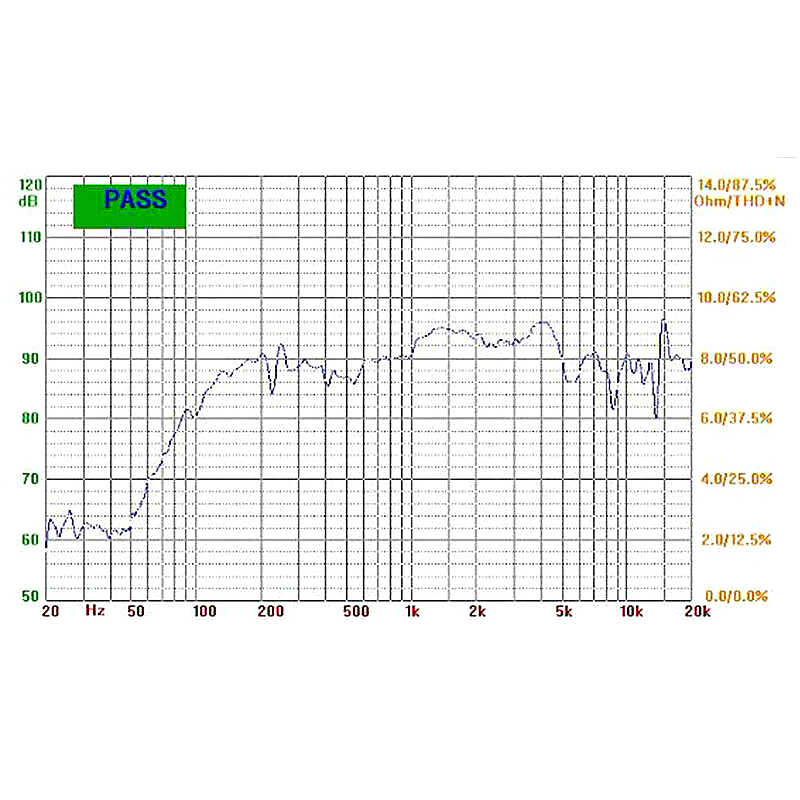

Response:Fo~20KHZ
S.P.L:91±3dB (AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ18.5*5.5+Φ15*5mm
Net weight:75g±8%
