Product Description

Loudspeaker 57mm YD57-25-4N12.5P-R 19mm cover 4 ohm Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD57-25-4N12.5P-R

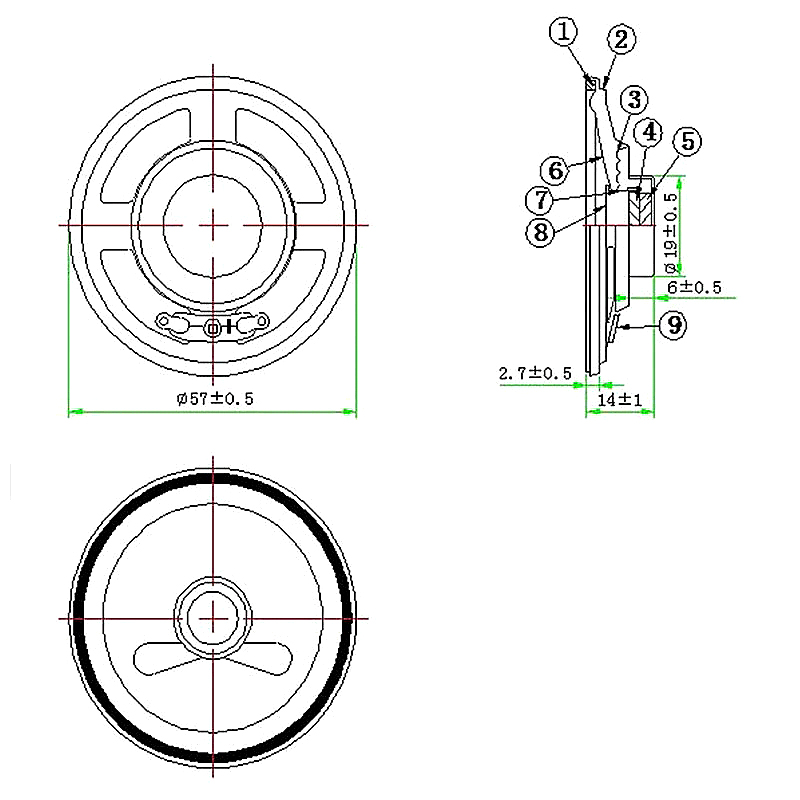

Dimension:Φ57*14H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:6W
Impedance:4Ω±15%Ω
Voice coil:13.28mm KSV+Cu
Fo:500±20%

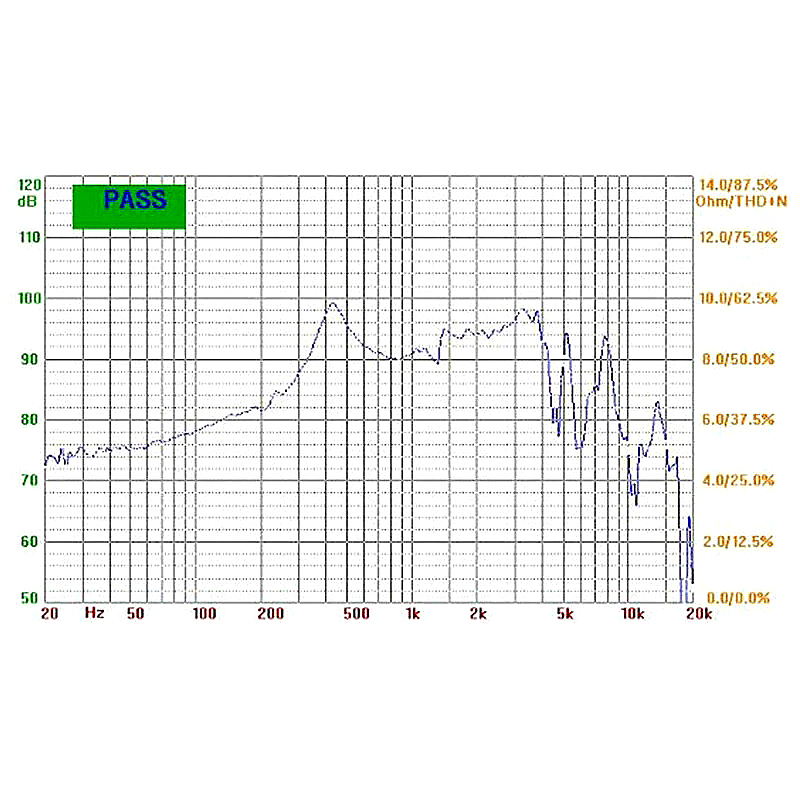

Response:Fo~5KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:20g±8%
