Loudspeaker

Loudspeaker 57mm YD57-31-16N12.5P-R 22mm magnet 16 ohm Multimedia Speaker Drivers

  • Loudspeaker 57mm YD57-31-16N12.5P-R 22mm magnet 16 ohm Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-31-16N12.5P-RDimension:Φ57*19.5H mmCone Material:PaperEdge:PaperNominal Power:1WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-31-16N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-31-16N12.5P-R 22mm magnet 16 ohm Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD57-31-16N12.5P-R

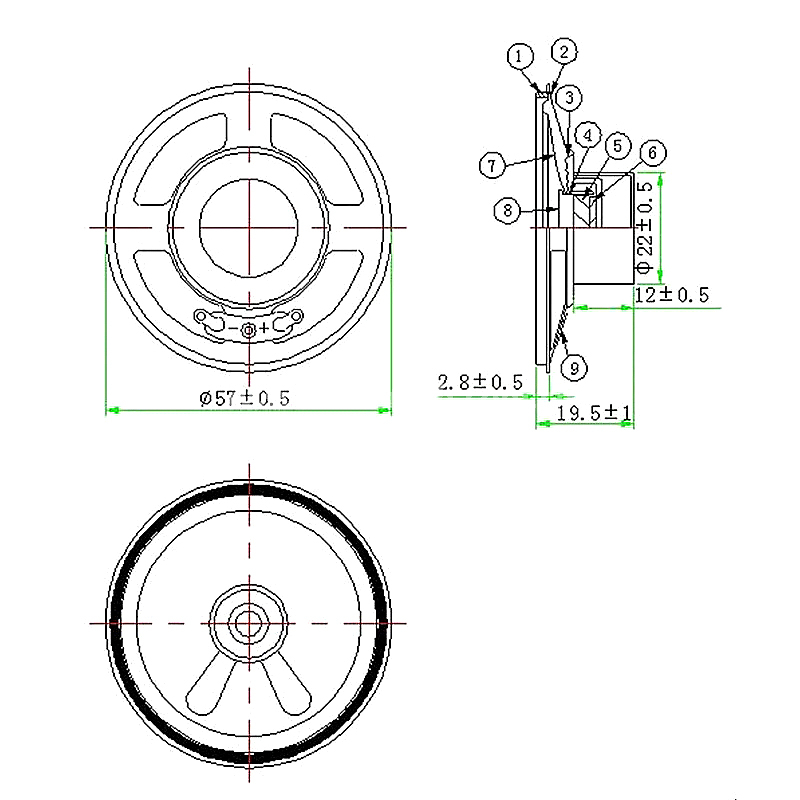

Dimension:Φ57*19.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:1W
Maximum Power:2W
Impedance:16±15%Ω
Voice coil:13.28mm PL+Cu
Fo:450±20%Hz

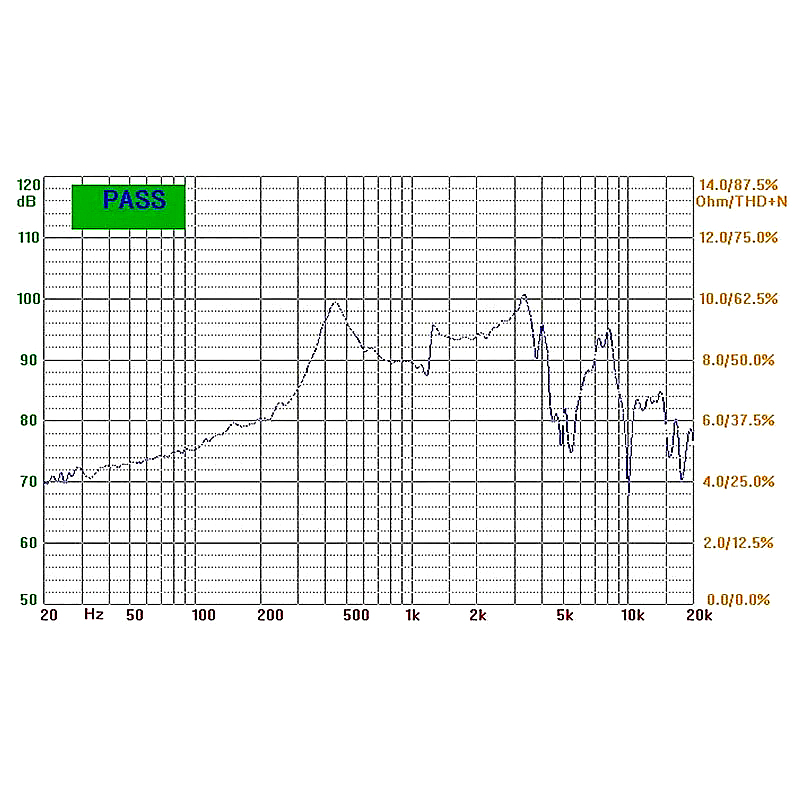

Response:Fo~5KHZ
S.P.L:90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2mm
Net weight:32g±8%
