Product Description

Loudspeaker 57mm YD57-10-8N12.5P-R 19mm magnet 8 ohm Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD57-10-8N12.5P-R

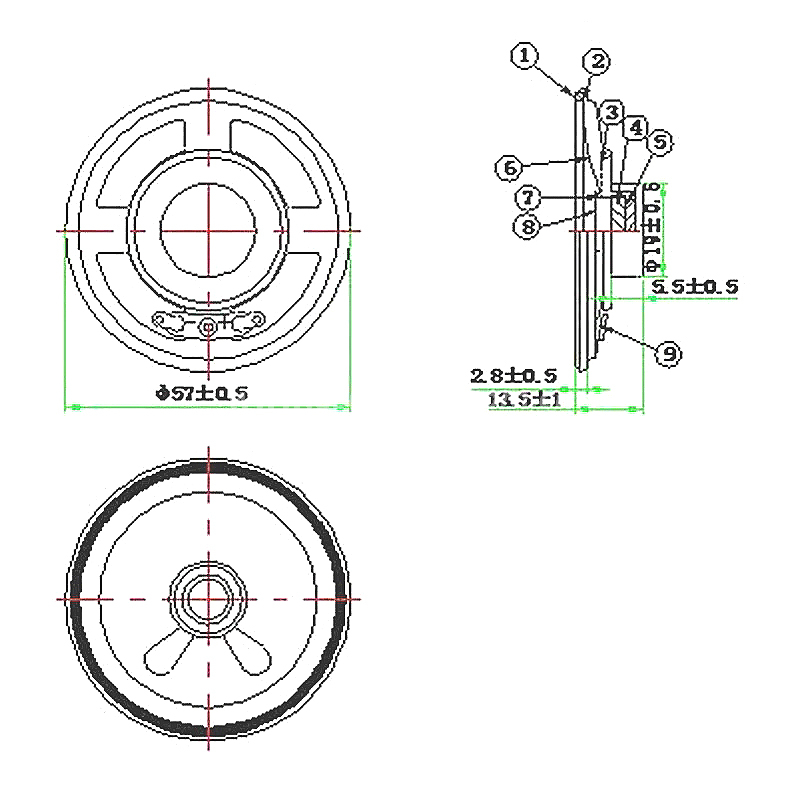

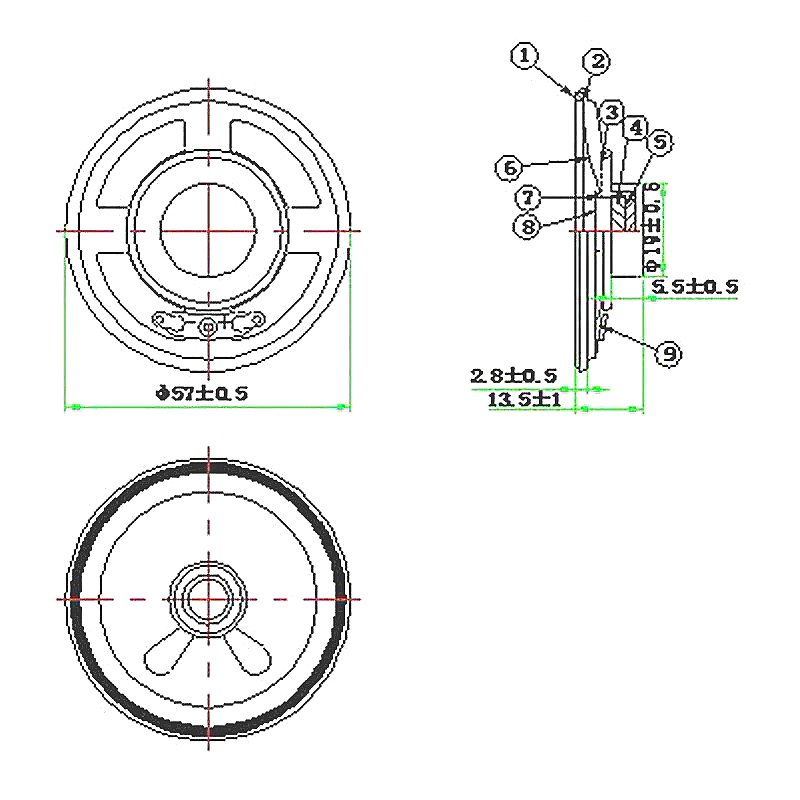

Dimension:Φ57*13.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:420±20%
Response:Fo~5KHZ
S.P.L:89±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:21g±8%
