Loudspeaker 120mm YD120-50-4F70P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 120mm YD120-50-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD120-50-4F70P-RDimension:120*120*54H mmCone Material:PaperEdge:FoamNominal Power:20WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-50-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 120mm YD120-50-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD120-50-4F70P-R

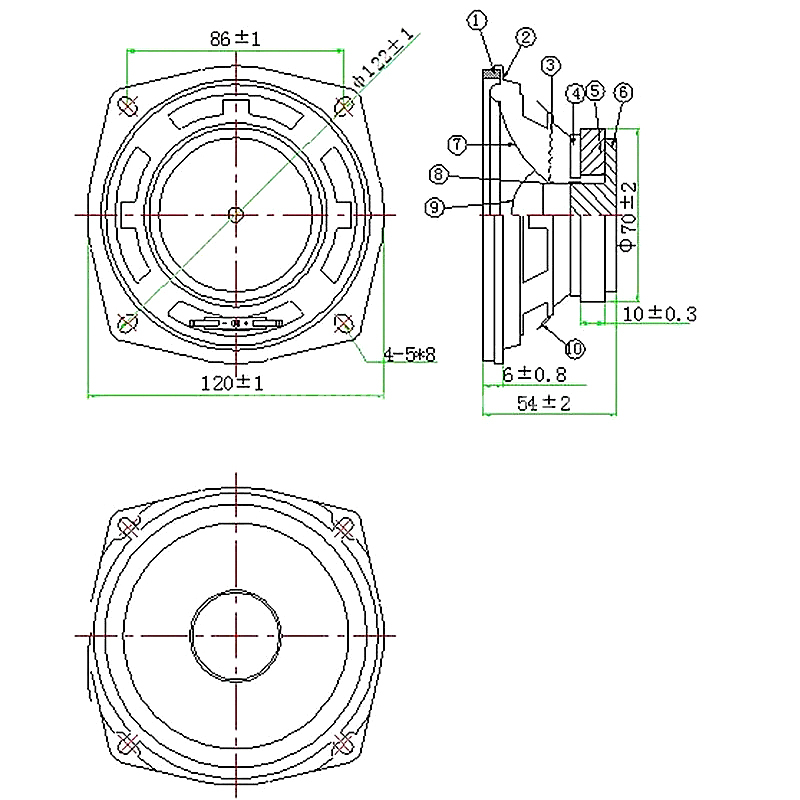

Dimension:120*120*54H mm
Cone Material:Paper
Edge:Foam
Nominal Power:20W
Maximum Power:25W
Impedance:4Ω±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:100±20%
Response:Fo~10KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*10mm
Net weight:420g±8%
