Loudspeaker

Loudspeaker YD120-01-8F60P 5 Inch 120mm Audio Speaker Drivers 8ohm 30W High Quality Speaker Parts

  • Model YD120-01-8F60PDiameter:119119mmCone Material:PaperEdge:PaperNominal Power:5wMaximum Power:10wImpedance:815%ΩVoice coil:Φ19.45mmFo:12020%HzResponse:F

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-01-8F60P
  • PDF
  • Description
  • Order

Product Description

2

                            Model                   YD120-01-8F60P

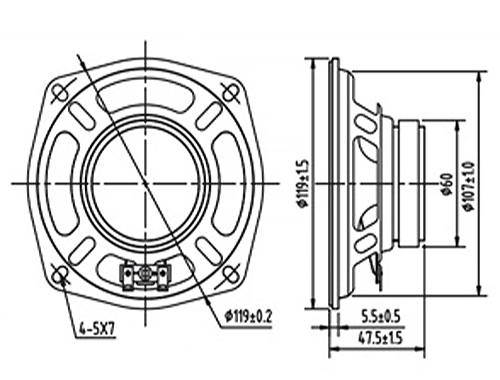

Diameter:

119×119mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

5w

Maximum Power:

10w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

120±20%Hz

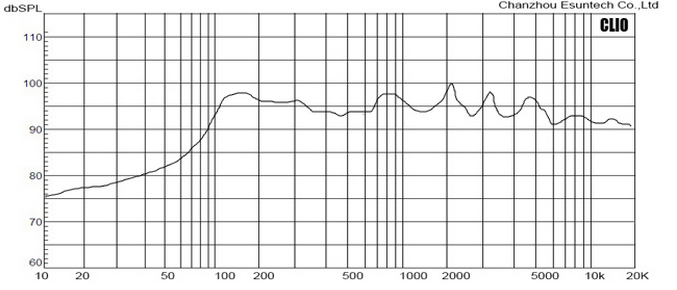

Response:

Fo-10kHz

S.P.L:

92±3dB/1W/0.5M

Magnet Size:

Φ60×32×8(Ferrite)

Net weight:

245g
