Medical Equipment Speaker

Loudspeaker 57mm YD57-02-8N12.5P-R 22mm magnet 8 OHM Speaker Drivers

  • Loudspeaker 57mm YD57-02-8N12.5P-R 22mm magnet 8 OHM Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-02-8N12.5P-RDimension:Φ57*19.5H mmCone Material:PaperEdge:PaperNominal

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-02-8N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-02-8N12.5P-R 22mm magnet 8 OHM  Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD57-02-8N12.5P-R

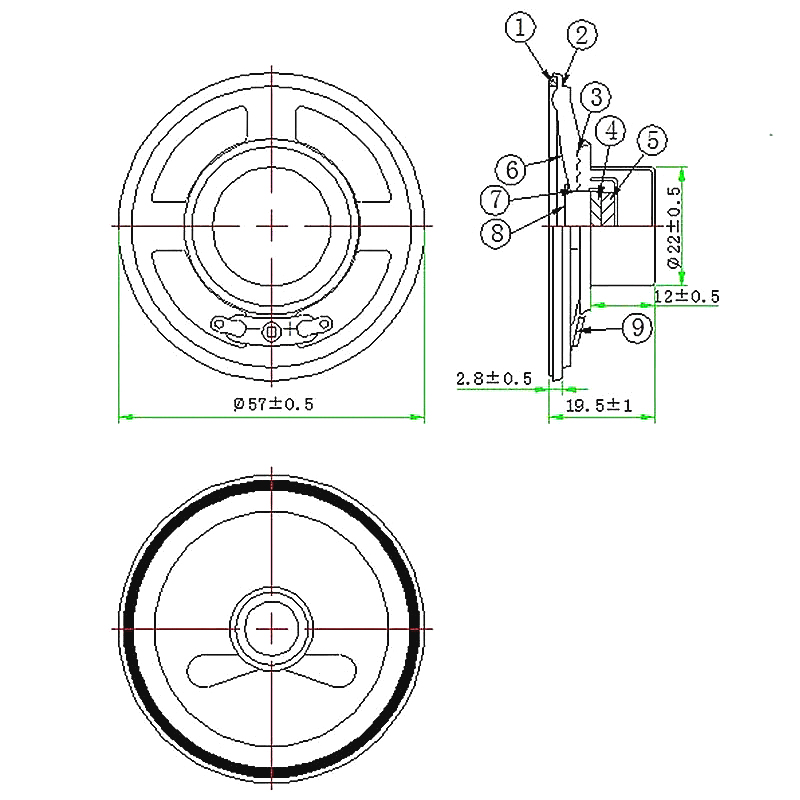

Dimension:Φ57*19.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:1W
Maximum Power:2W
Impedance:8Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:400±20%

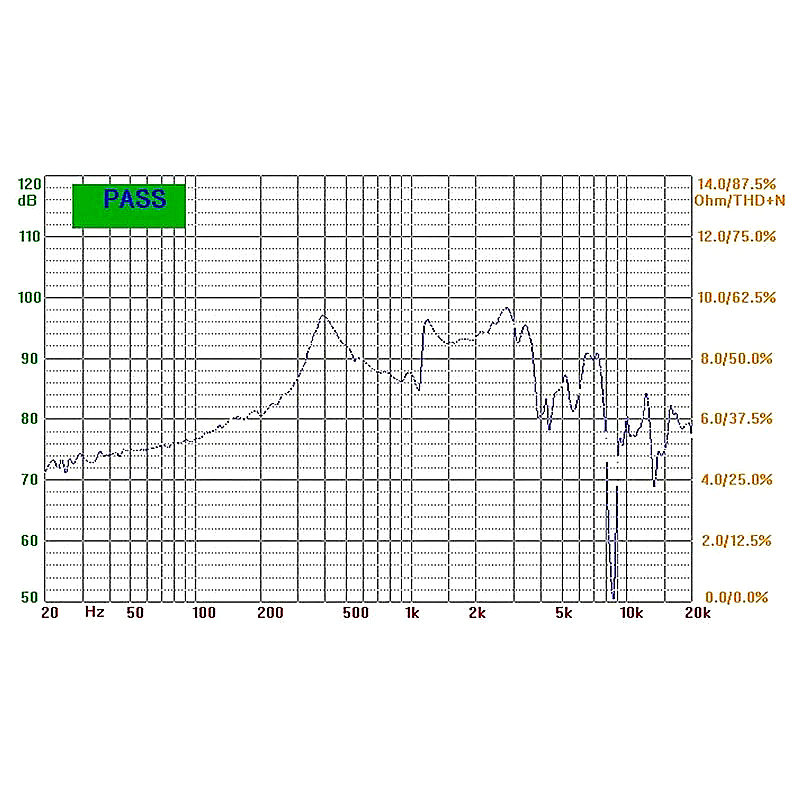

Response:Fo~7KHZ
S.P.L:89±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2mm
Net weight:30g±8%
