Loudspeaker

Loudspeaker 118mm YD118-01-5F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 118mm YD118-01-5F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD118-01-5F70P-RDimension:118*118*70H mmCone Material:PaperEdge:FoamNominal Power:20WMaximum Power:2

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD118-01-5F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 118mm YD118-01-5F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD118-01-5F70P-R

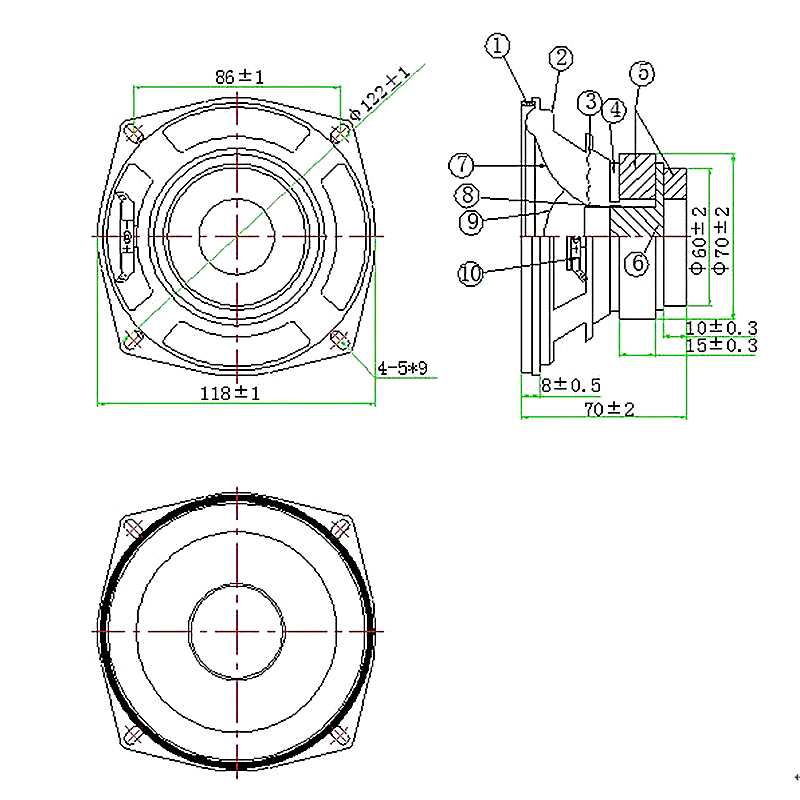

Dimension:118*118*70H mm
Cone Material:Paper
Edge:Foam
Nominal Power:20W
Maximum Power:25W
Impedance:5±15%Ω
Voice coil:Φ25.5mm ASV+Cu
Fo:85±20%Hz

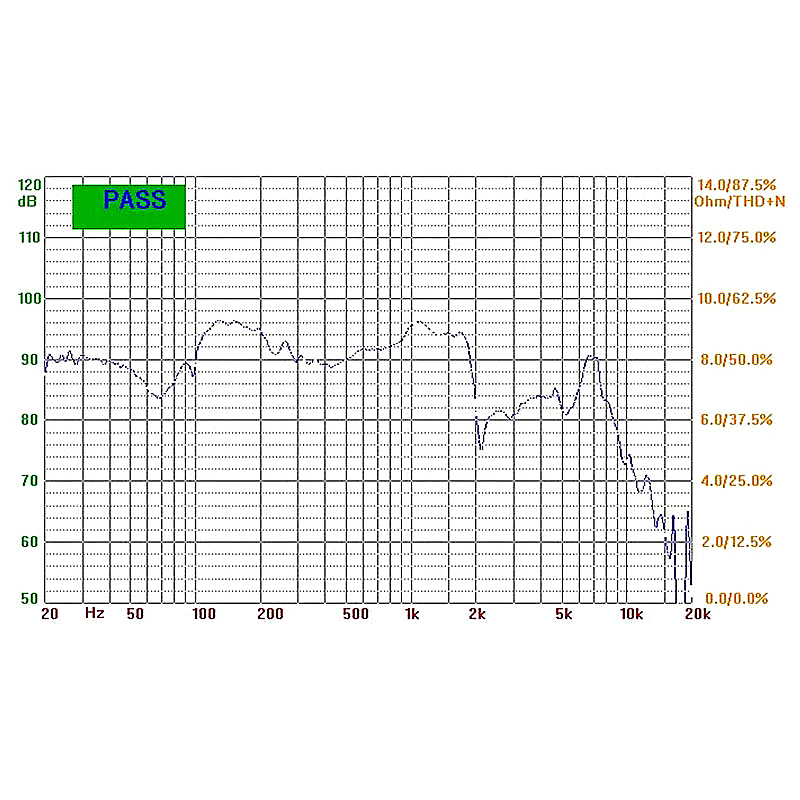

Response:Fo~2KHZ
S.P.L:92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*15mm+60*32*10mm
Net weight:600g±8%
