Loudspeaker

Loudspeaker 116mm YD116-01-4F70P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 116mm YD116-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD116-01-4F70P-RDimension:Φ116*55H mmCone Material:PaperEdge:RubberNominal Power:15WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD116-01-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 116mm YD116-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD116-01-4F70P-R

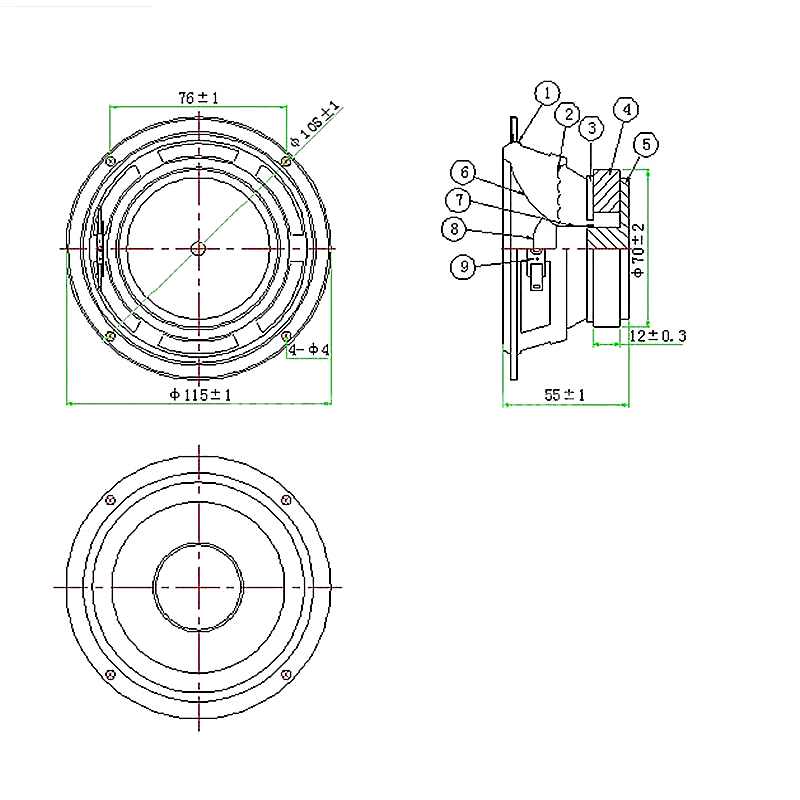

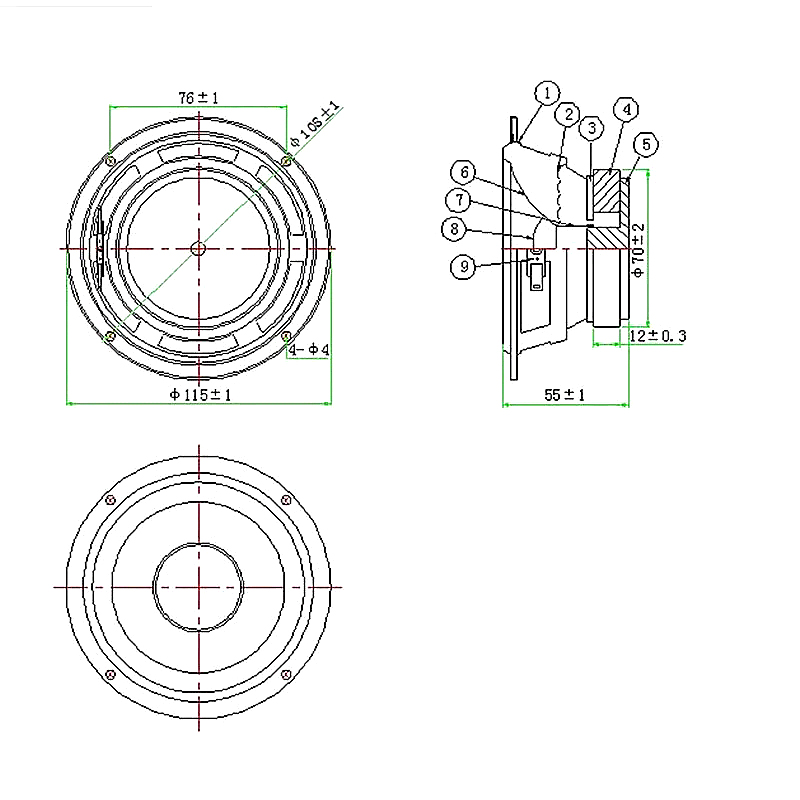

Dimension:Φ116*55H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:15W
Maximum Power:20W
Impedance:4Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:100±20%
Response:Fo~10KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*12mm
Net weight:400g±8%
