Loudspeaker

Loudspeaker 115mm YD115-01-4F70P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 115mm YD115-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD115-01-4F70P-RDimension:Φ115*54H mmCone Material:PaperEdge:RubberNominal Power:15WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD115-01-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 115mm YD115-01-4F70P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD115-01-4F70P-R

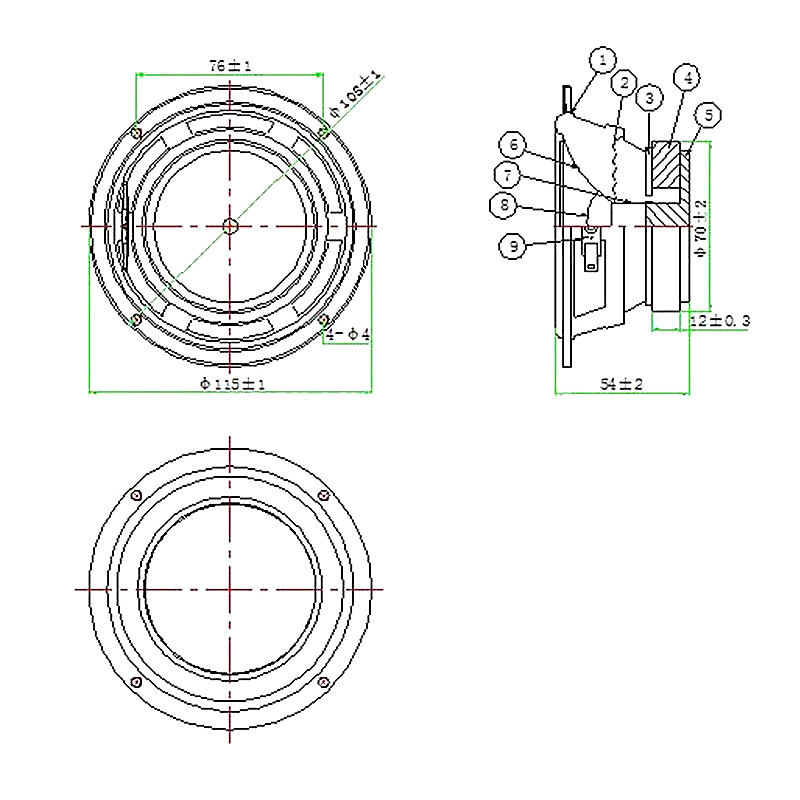

Dimension:Φ115*54H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:15W
Maximum Power:20W
Impedance:4Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:60±20%

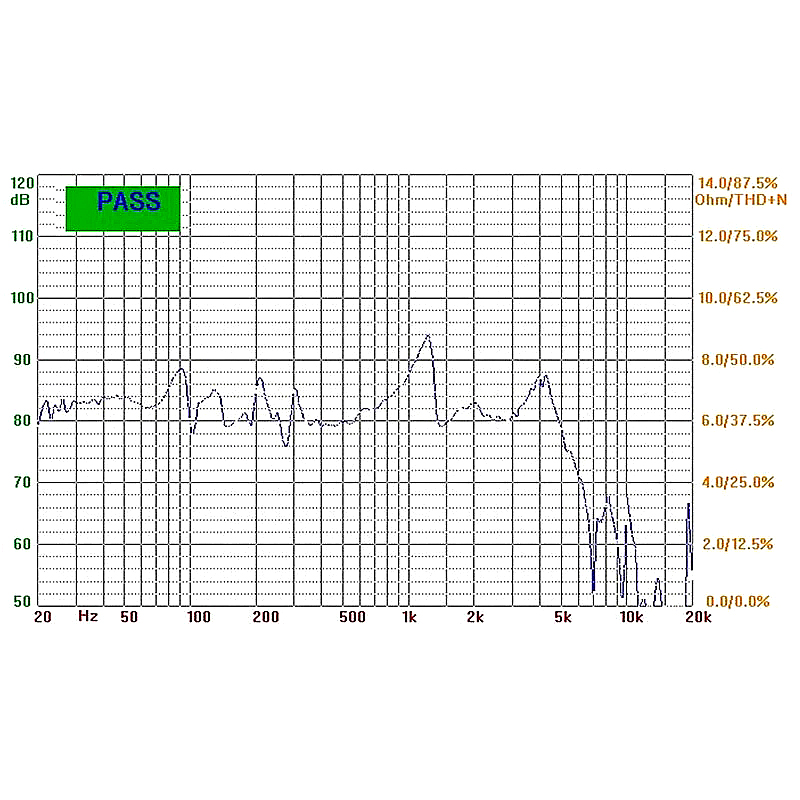

Response:Fo~5KHZ
S.P.L:86±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ70*32*10mm
Net weight:400g±8%
