Medical Equipment Speaker

Loudspeaker 107.5mm YD107.5-01-4F45P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 107.5mm YD107.5-01-4F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD107.5-01-4F45P-RDimension:107.5*107.5*35HmmCone Material:PaperEdge:PaperNominal Power:3W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD107.5-01-4F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 107.5mm YD107.5-01-4F45P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD107.5-01-4F45P-R

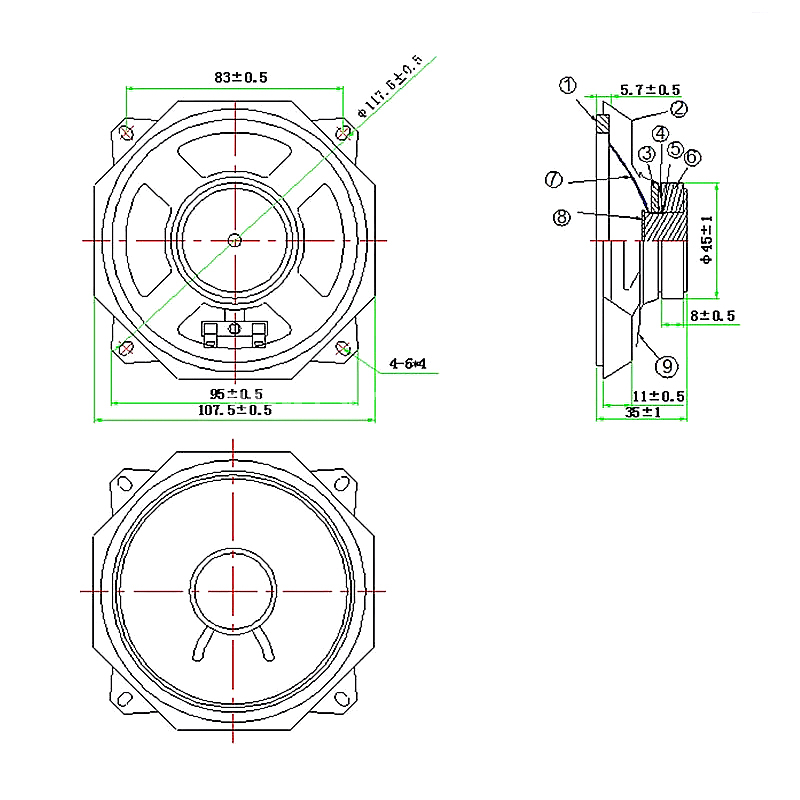

Dimension:107.5*107.5*35Hmm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm ASV+Cu
Fo:160±20%
Response:Fo~20KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:134g±8%
