Loudspeaker

Loudspeaker 133mm YD133-02-4F80P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 133mm YD133-02-4F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD133-02-4F80P-RDimension:133*133*68.5H mmCone Material:Paper Edge:FoamNominal Power:20WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD133-02-4F80P-R
  • Diameter: 133*133*68.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 133mm YD133-02-4F80P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD133-02-4F80P-R

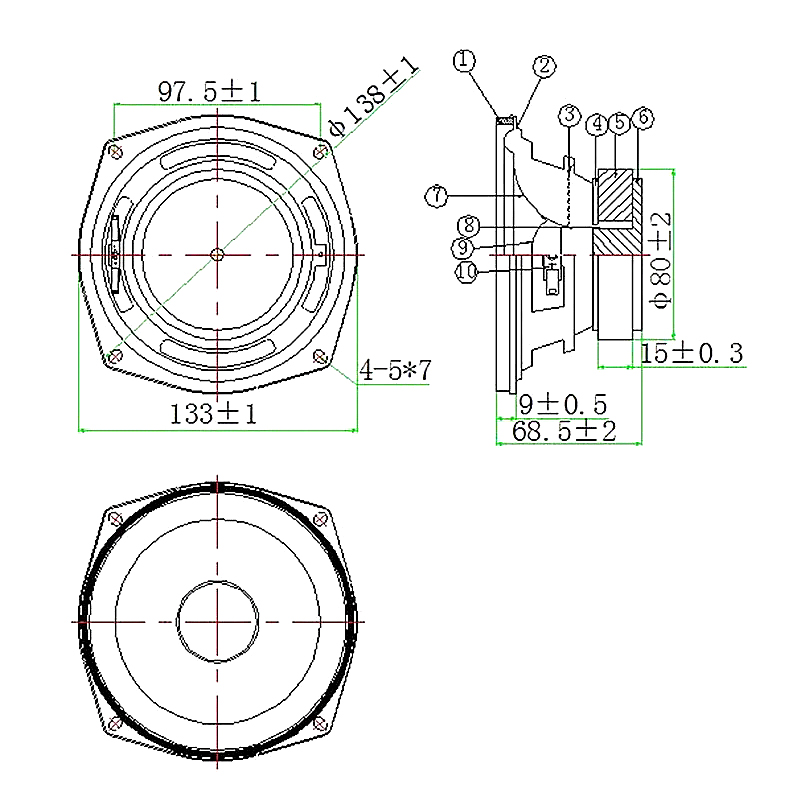

Dimension:133*133*68.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:20W
Maximum Power:25W
Impedance:4Ω±15%Ω
Voice coil:Φ25.5 ASV+Cu
Fo:80±20%
Response:Fo~15KHZ
S.P.L:95±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ80*32*15mm
Net weight:700g±8%
