Product Description

Loudspeaker 52mm YD52-06-8N12P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD52-06-8N12P-R

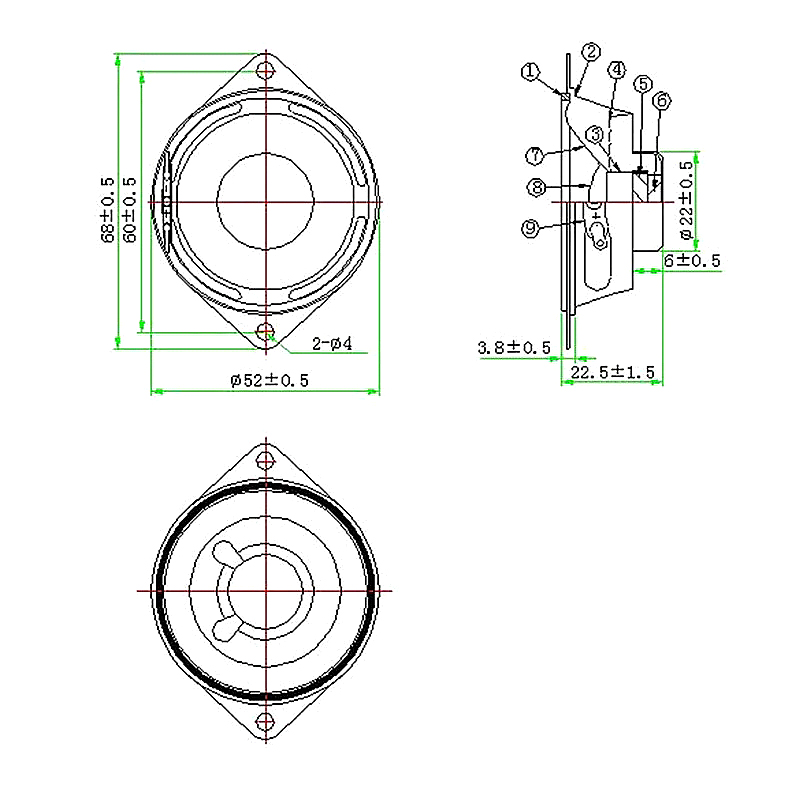

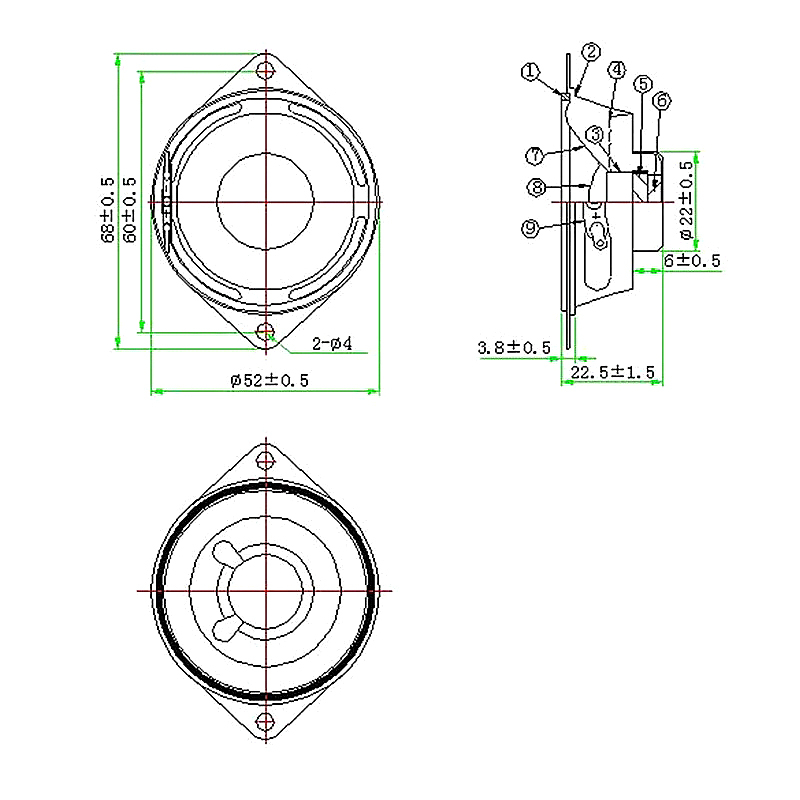

Dimension:52*68*22.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:4W
Maximum Power:5W
Impedance:8Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:220±20%

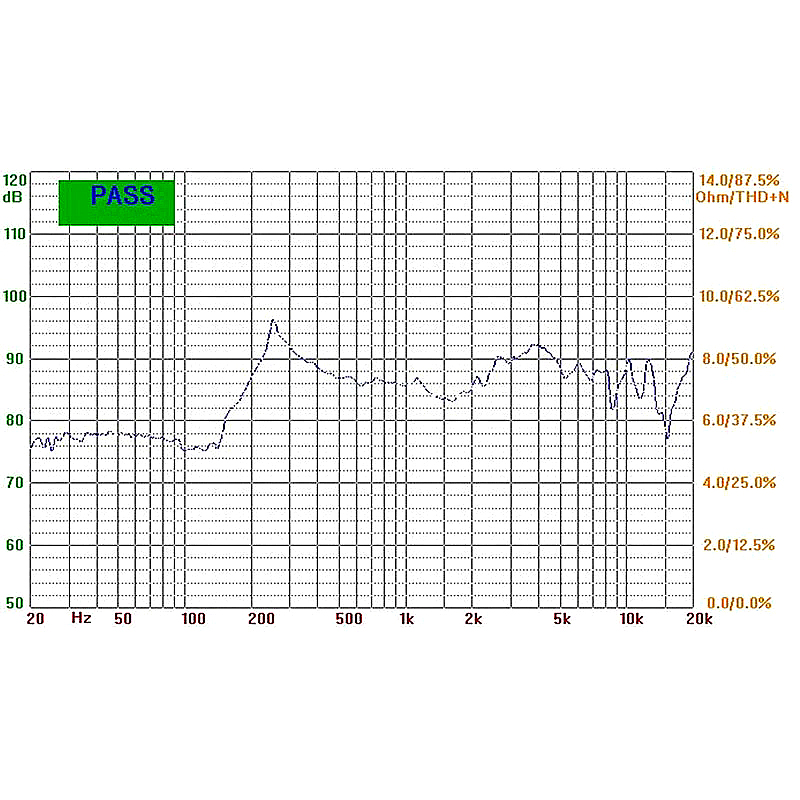

Response:Fo~20KHZ
S.P.L:86±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12*3mm
Net weight:32g±8%
