Product Description

Loudspeaker 52mm YD52-03-8N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD52-03-8N15.5P-R

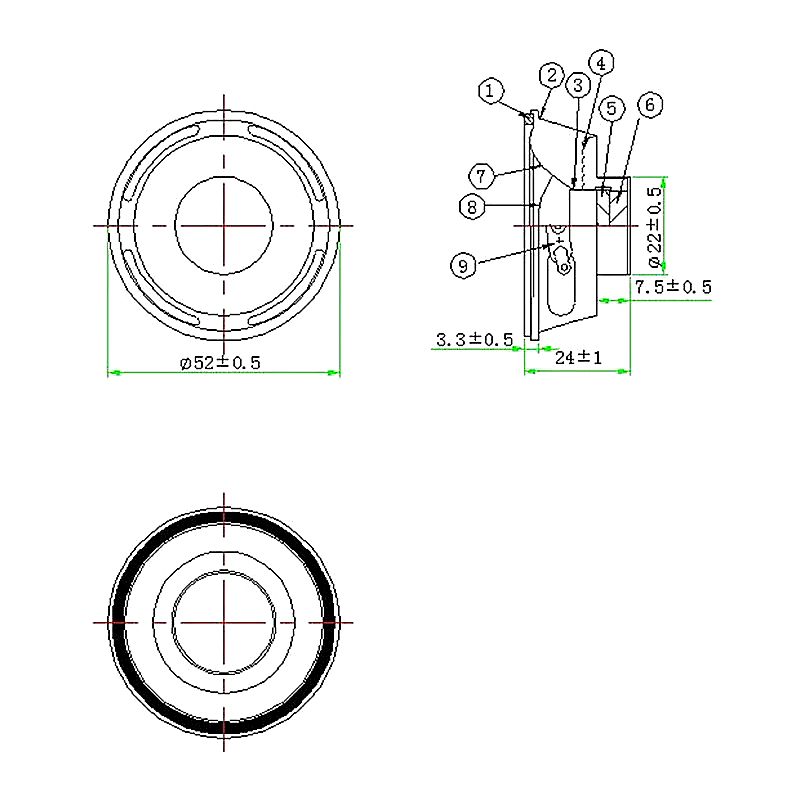

Dimension:Φ52*24H mm
Cone Material:Paper
Edge:PU
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:230±20%Hz

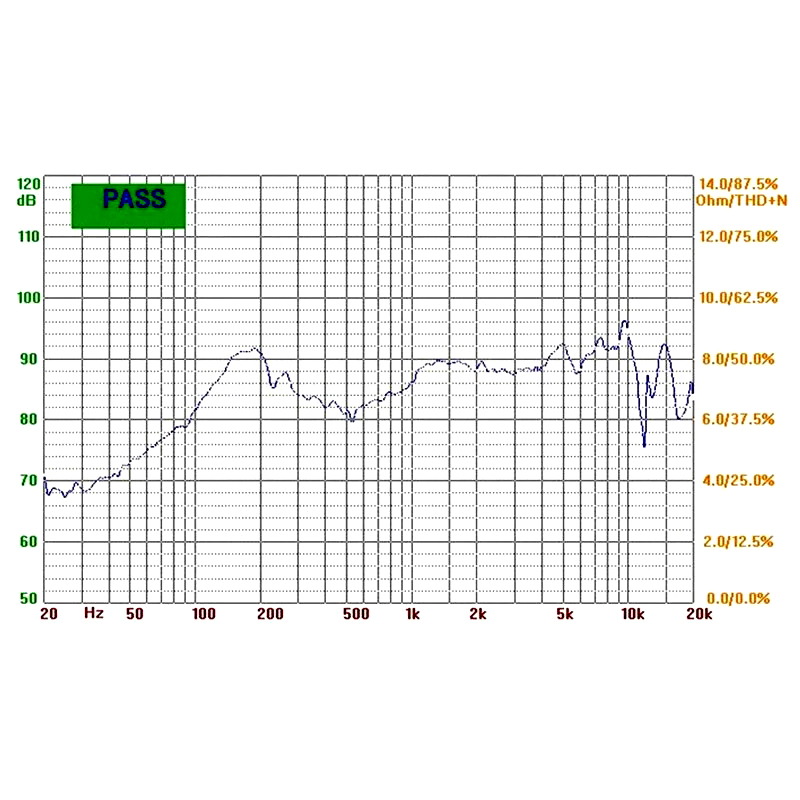

Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ15.5*4.0mm
Net weight:30g±8%
