Loudspeaker

Loudspeaker YD120-3C-4F70UL 118mm*118mm 4.6" Car Speaker drivers Used for Audio System car door speaker

  • Model

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-3C-4F70UL
  • Diameter: 120mm
  • Description
  • Order

Product Description

YD120-3C-4F70UL-Model

ModelYD120-3C-4F70UL
Diameter: 120mm
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 25W
Impedance:  4±15%Ω
Fo: 125±20%Hz

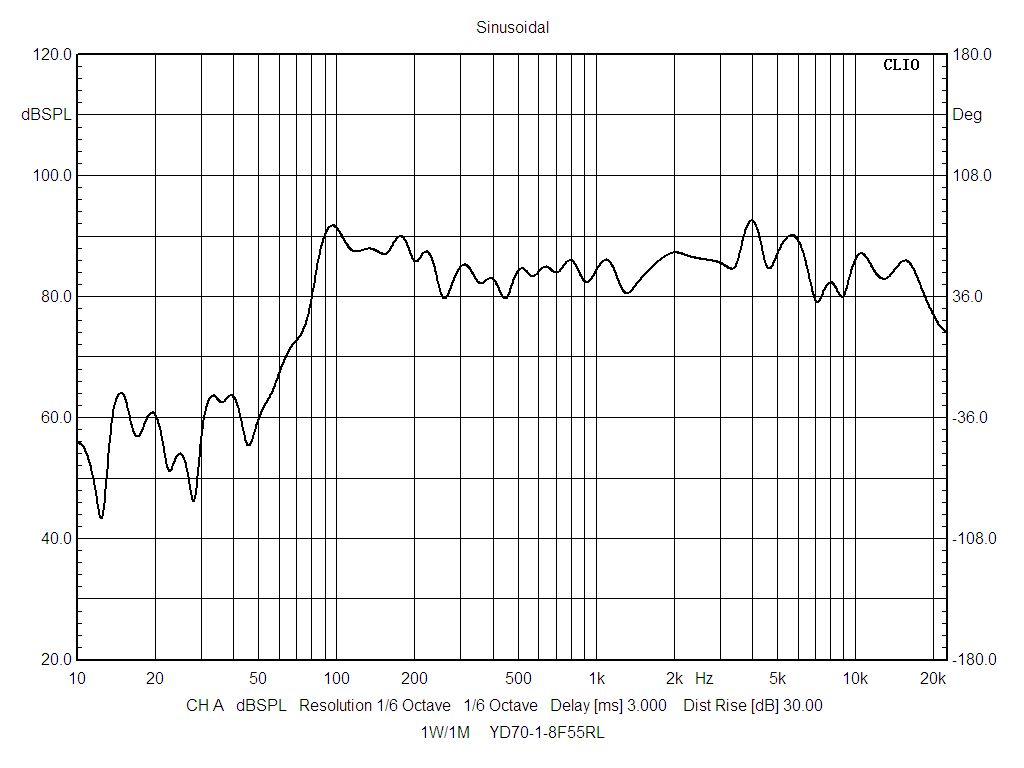

Response: Fo-15kHz
S.P.L: 88±3dB/W/M

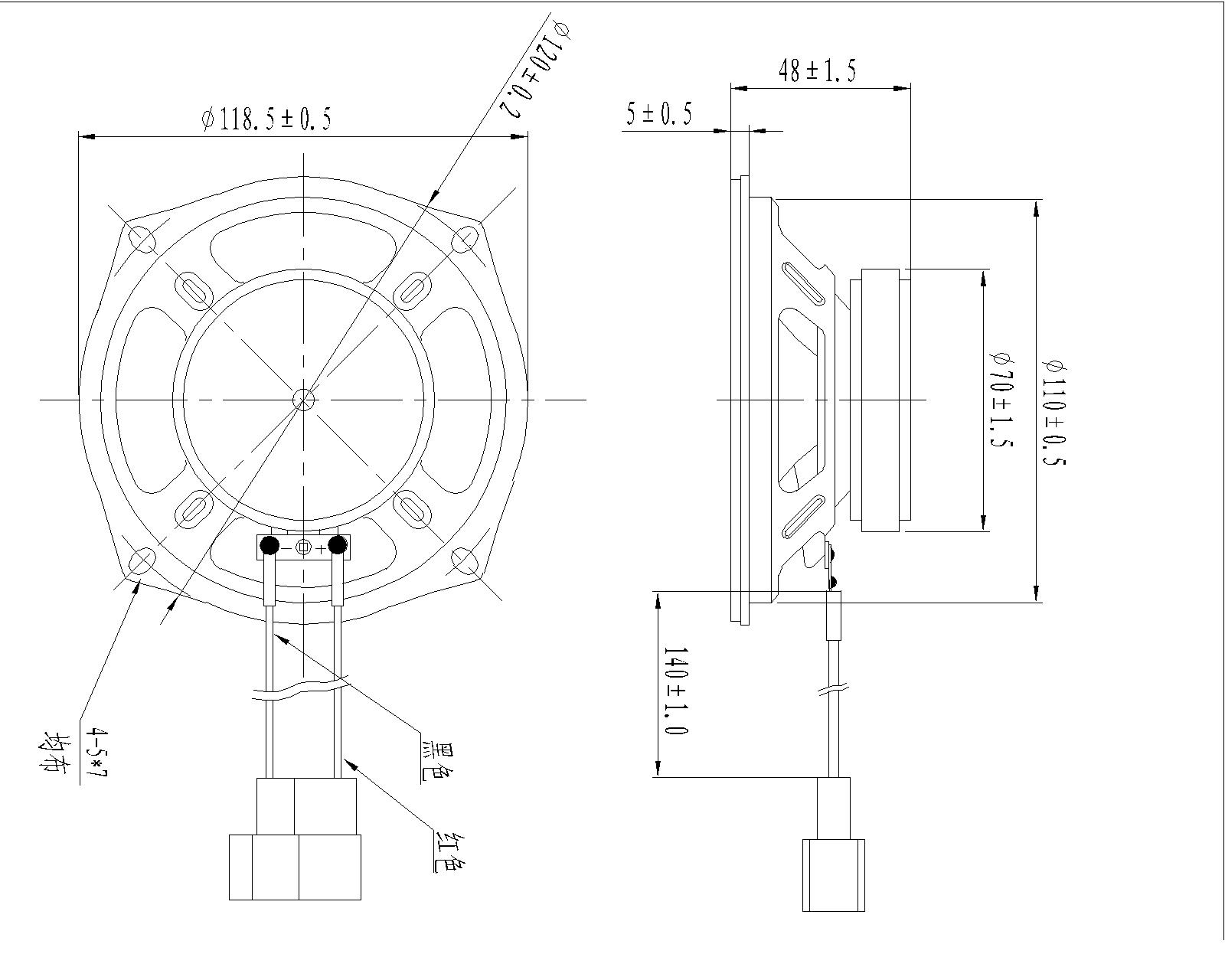

Magnet Size: Φ70×Φ32×10
Net weight:

YD120-3C-4F70UL-Q
