Loudspeaker

Loudspeaker 120mm YD120-32-8F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 120mm YD120-32-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD120-32-8F60P-RDimension:120*120*41H mmCone Material:PaperEdge:FoamNominal Power:10WMaximum Power:1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-32-8F60P-R
  • Diameter: 120*120*41H mm
  • PDF
  • Description
  • Order

Product Description

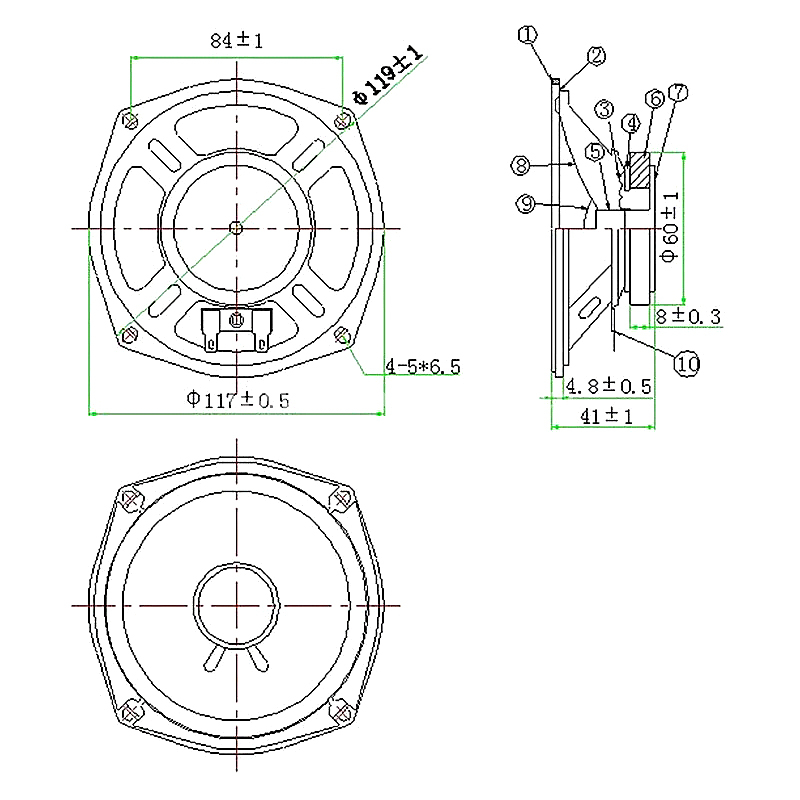

Loudspeaker 120mm YD120-32-8F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD120-32-8F60P-R
Dimension:120*120*41H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ14.28 ASV+Cu
Fo:110±20%Hz
Response:Fo~15KHZ
S.P.L:88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*8mm
Net weight:196g±8%
