Medical Equipment Speaker

Loudspeaker 50x110mm YD511-40-16F40CT Min Full Range Equipment Speaker Drivers

  • Loudspeaker 50mm YD511-40-16F40CT Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD511-40-16F40CTDimension:50*110*38H mmCone Material:Cloth + PaperEdge:PaperNominal Power:5WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD511-40-16F40CT
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD511-40-16F40CT Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD511-40-16F40CT

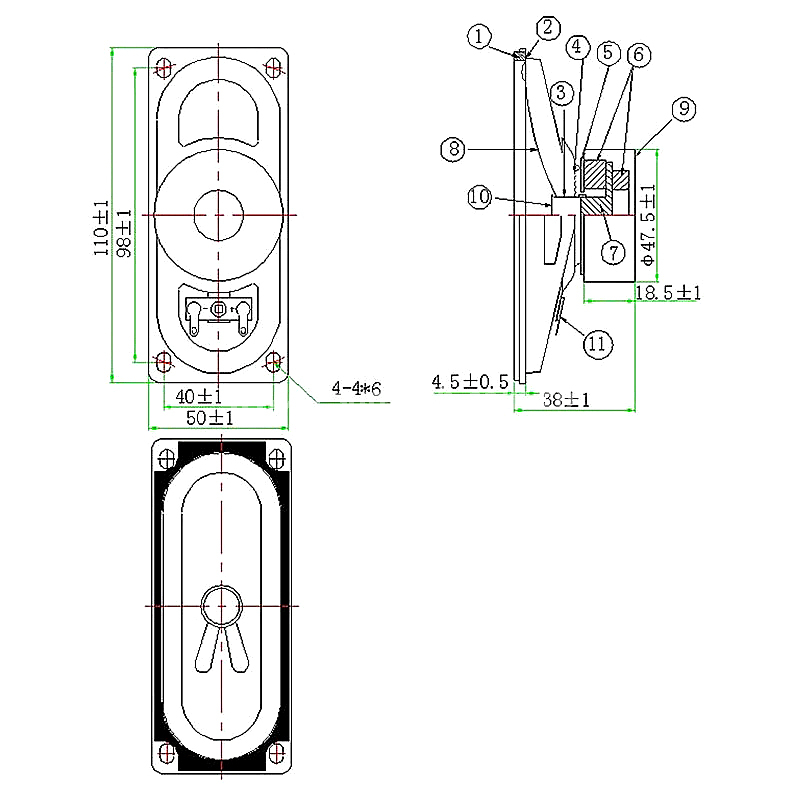

Dimension:50*110*38H mm
Cone Material:Cloth + Paper
Edge:Paper
Nominal Power:5W
Maximum Power:8W
Impedance:16Ω±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:230±20%
Response:Fo~20KHZ
S.P.L:89±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8,Φ32*18*5mm
Net weight:144g±8%
