Loudspeaker

Loudspeaker YD103-2-F40UT 4 Inch 100mm Audio Speaker Components 4ohm 15W High Quality Speaker with Magnet Cover

  • 1 Model YD103-2-F40UT2Diameter:Φ101mm3Cone Material:Paper4Edge:Foam/Cloth5Nominal Power:10w6Maximum Power:15w7Impedance:4/8/16/3215%Ω8Voice coil:9Fo:15020%Hz

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD103-2-F40UT
  • PDF
  • Description
  • Order

Product Description

2

      1                       Model                YD103-2-F40UT

2

Diameter:

Φ101mm

3

Cone Material:

Paper

4

Edge:

Foam/Cloth

5

Nominal Power:

10w

6

Maximum Power:

15w

7

Impedance:

4/8/16/32±15%Ω

8

Voice coil:


9

Fo:

150±20%Hz

10

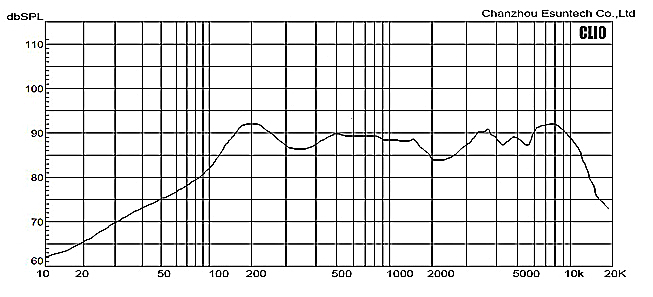

Response:

Fo-10kHz

11

S.P.L:

88±3dB/1W/0.5M

12

Magnet Size:

Φ40×19×8(Ferrite)

13


Φ32×18×6(Ferrite)

14

Net weight:

170g

3
