Loudspeaker 120mm YD120-50-4F60P-R Min Full Range Woofer Speaker Drivers

  • ModelYD120-50-4F60P-RDimension:120*120*41H mmCone Material:PaperEdge:FoamNominal Power:10WMaximum Power:15WImpedance:4Ω15%ΩVoice coil:Φ14.28 ASV+CuFo:11020%Response:Fo~15KHZS.P.L:883dB(AT 0.1W/0.1M,Av

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-50-4F60P-R
  • Diameter: 120*120*41H mm
  • PDF
  • Description
  • Order

Product Description

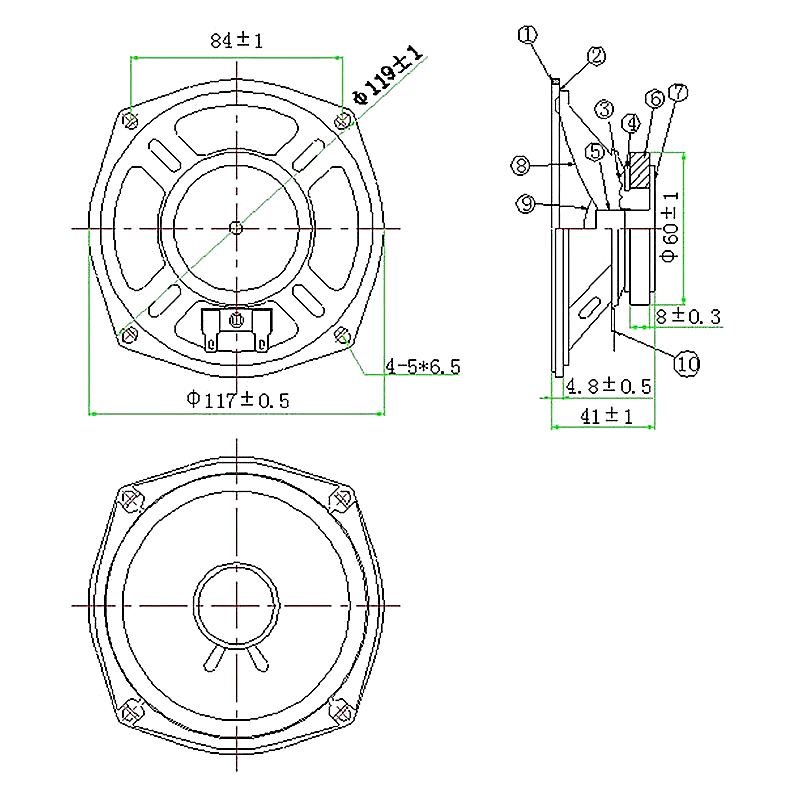

ModelYD120-50-4F60P-R
Dimension:120*120*41H mm
Cone Material:Paper
Edge:Foam
Nominal Power:10W
Maximum Power:15W
Impedance:4Ω±15%Ω
Voice coil:Φ14.28 ASV+Cu
Fo:110±20%
Response:Fo~15KHZ
S.P.L:88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*8mm
Net weight:196g±8%
