Loudspeaker

Loudspeaker YD120-03-4F70U 5 Inch 118mm Audio Speaker Drivers 4ohm 25W High Quality Loudspeaker Parts

  • Model YD120-03-4F70UDiameter:118.5118.5mmCone Material:PaperEdge:FoamNominal Power:10wMaximum Power:25wImpedance:415%ΩVoice coil:Φ19.45mmFo:12520%HzRespons

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-03-4F70U
  • Diameter: 118.5×118.5mm
  • PDF
  • Description
  • Order

Product Description

QQ截图20201211134537

                           Model                   YD120-03-4F70U

Diameter:

118.5×118.5mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

10w

Maximum Power:

25w

Impedance:

4±15%Ω

Voice coil:

Φ19.45mm

Fo:

125±20%Hz

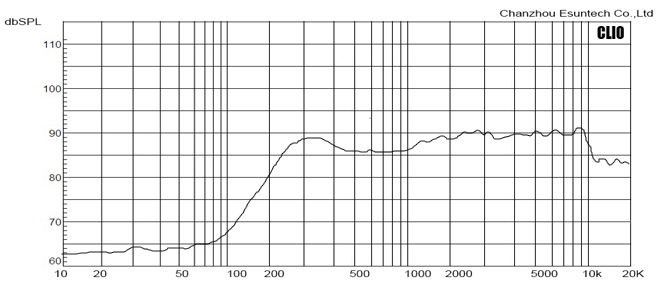

Response:

Fo-20kHz

S.P.L:

92±3dB/1W/0.5M

Magnet Size:

Φ70×32×10(Ferrite)

Net weight:

413g

3
