Loudspeaker

Loudspeaker YD120-04-8F60UT 5 Inch 120mm Full Range Loudspeaker Components 8ohm 20W Audio Speaker with Magnet Cover

  • Model YD120-04-8F60UTDiameter:119119mmCone Material:PaperEdge:FoamNominal Power:10wMaximum Power:20wImpedance:815%ΩVoice coil:Φ19.45mmFo:8520%HzResponse:Fo-

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD120-04-8F60UT
  • Diameter: 119×119mm
  • PDF
  • Description
  • Order

Product Description

QQ截图20201211134537

                           Model                  YD120-04-8F60UT

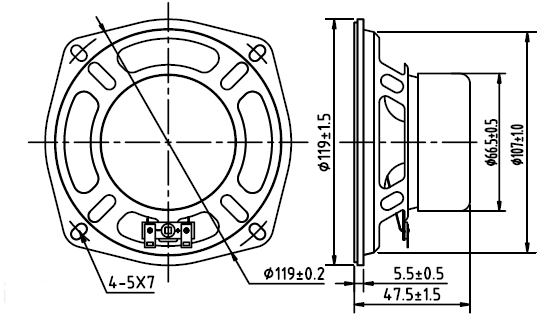

Diameter:

119×119mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

10w

Maximum Power:

20w

Impedance:

8±15%Ω

Voice coil:

Φ19.45mm

Fo:

85±20%Hz

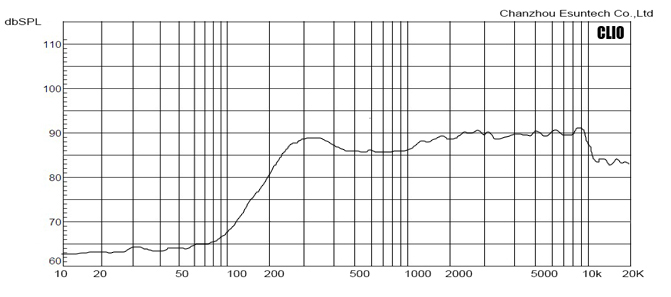

Response:

Fo-7kHz

S.P.L:

90±3dB/1W/0.5M

Magnet Size:

Φ60×32×10(Ferrite)

Net weight:

455g
