Loudspeaker

Loudspeaker YD813-2B-8N13.5U 77mm*128mm 813 TV Speaker Drivers, Tv Speaker Unit

  • Model YD813-2B-8N13.5UDiameter: 128x77mmCone Material: PaperEdge: FoamNominal Power: 15wMaximum Power: 20wImpedance: 815%ΩFo: 13020%Hz Response: Fo-10kHz

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD813-2B-8N13.5U
  • Diameter: 128x77mm
  • Description
  • Order

Product Description

2

                          Model                  YD813-2B-8N13.5U

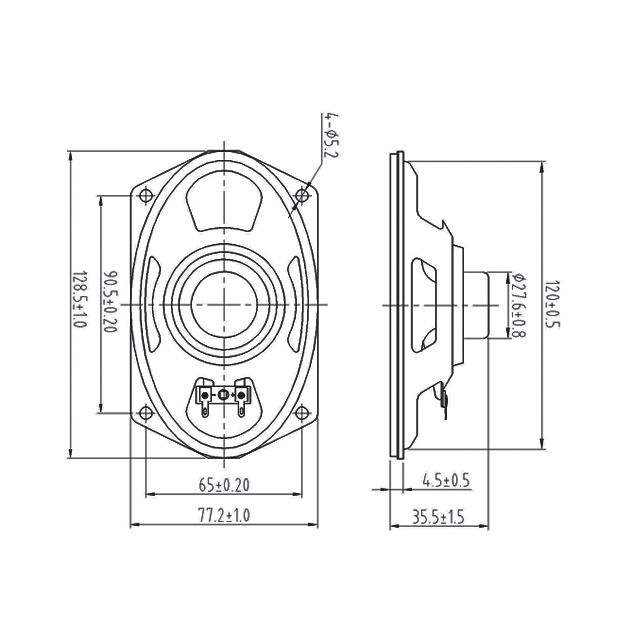

Diameter:

128x77mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

15w

Maximum Power:

20w

Impedance:

8±15%Ω

Fo:

130±20%Hz

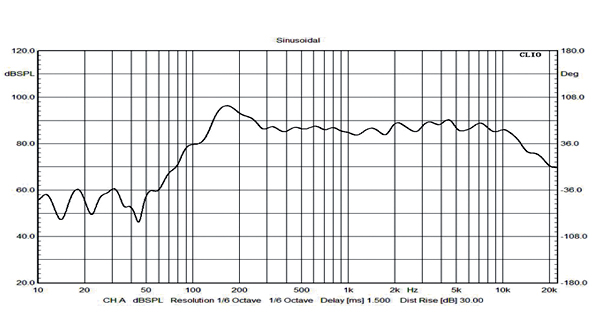

Response:

Fo-10kHz

S.P.L:

90±3dB/W/M

Magnet Size:

Φ13.5x5(NdFeB)

Net weight:

85g

3
