Loudspeaker

Loudspeaker 60x90mm YD6090-01-8F40CT TV speaker laptop loudspeaker

  • Loudspeaker 93mm YD6090-01-8F40CT Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD6090-01-8F40CTDimension:93*58mmCone Material:PaperEdge:Foam/ClothNominal Power:10WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD6090-01-8F40CT
  • Diameter: 93*58mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 93mm YD6090-01-8F40CT Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd

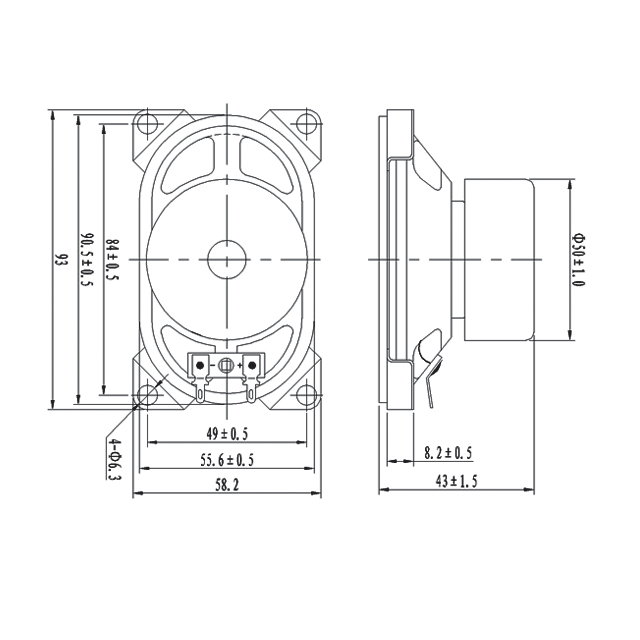

2

ModelYD6090-01-8F40CT
Dimension:93*58mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:10W
Maximum Power:15W
Impedance:8±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:200±20%Hz
Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40×19×8(Ferrite)
Φ32×18×6(Ferrite)
Net weight:167g±8%

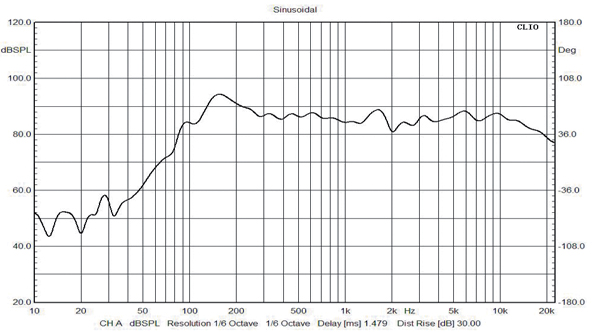

3
