Loudspeaker

Loudspeaker 110*50mm YD511-01-8F40CT Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 111*51mm YD511-01-8F40CT Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD511-01-8F40CTDimension:111*51H mmCone Material:PaperEdge:Foam/ClothNominal Power:5WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD511-01-8F40CT
  • Diameter: 111*51H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 111*51mm YD511-01-8F40CT Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd




2

ModelYD511-01-8F40CT

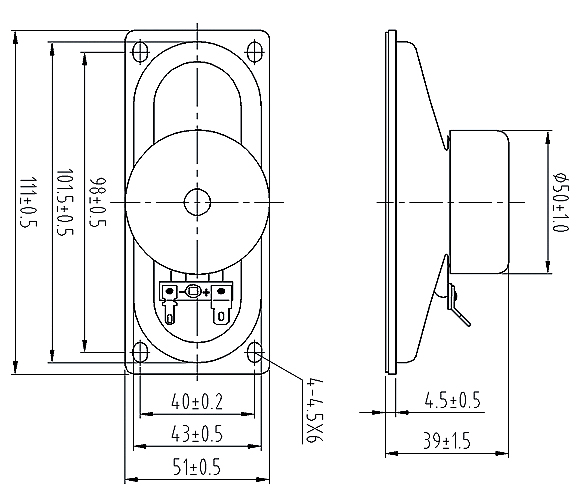

Dimension:111*51H mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:5W
Maximum Power:10W
Impedance:8±15%Ω
Fo:120±20%Hz

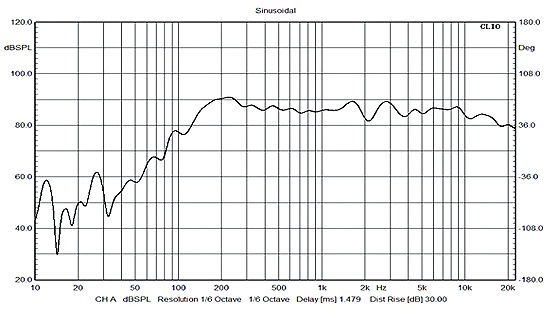

Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40×19×8(Ferrite)Φ32×18×6(Ferrite)
Net weight:170g±8%

3
