Loudspeaker 50*110mm YD511-68-4F45M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 50*110mm YD511-68-4F45M-R Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD511-68-4F45M-RDimension:50*90*32H mmCone Material:PETEdge: PaperNominal Power:5WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD511-68-4F45M-R
  • Diameter: 50*90*32H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50*110mm YD511-68-4F45M-R Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD511-68-4F45M-R

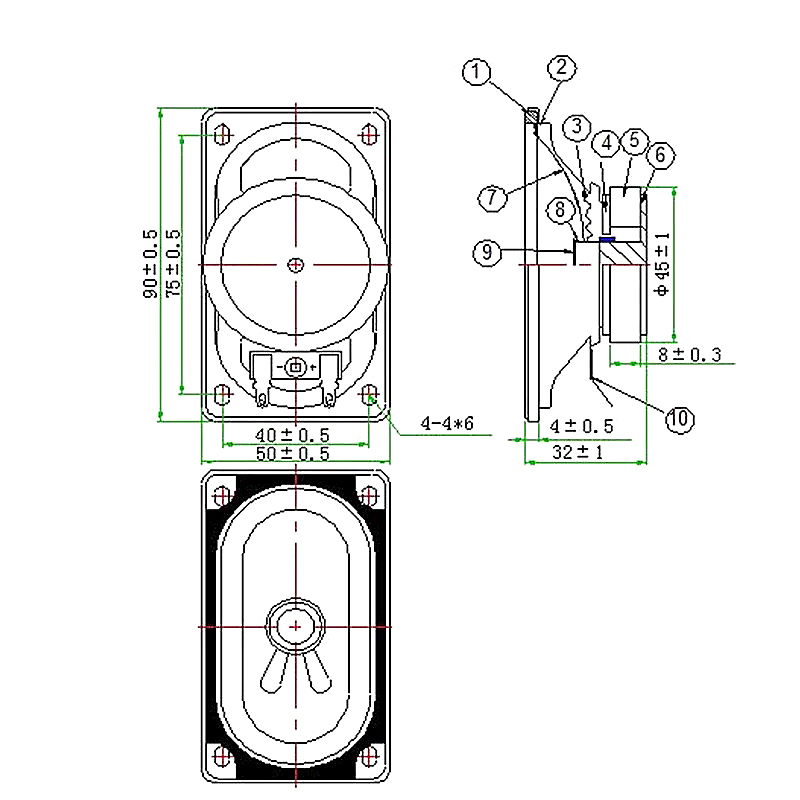

Dimension:50*90*32H mm
Cone Material:PET
Edge: Paper
Nominal Power:5W
Maximum Power:6W
Impedance:4Ω±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:380±20%

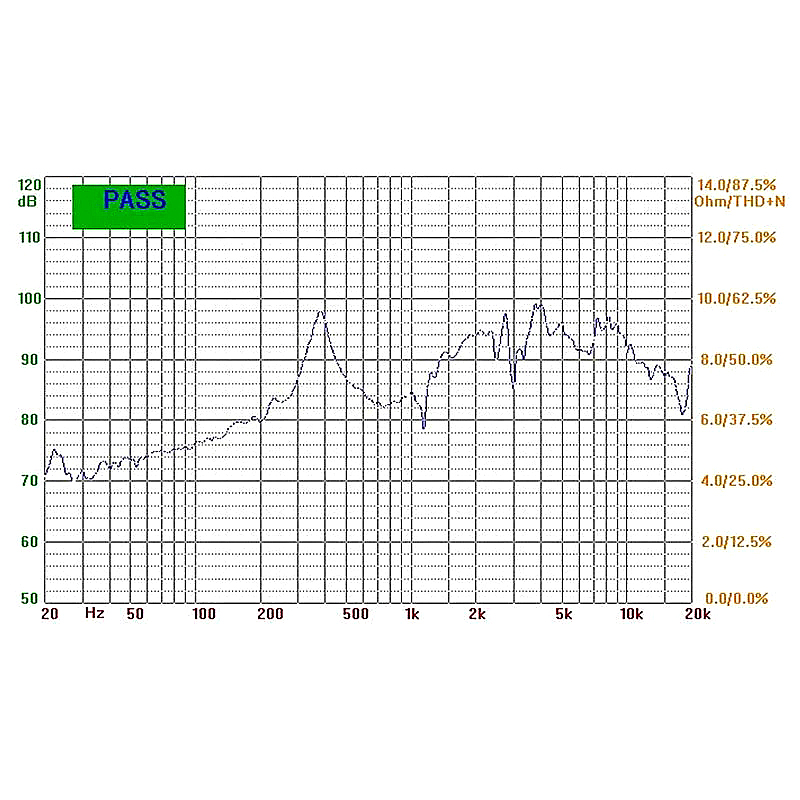

Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:120g±8%
