Loudspeaker

Loudspeaker 50mmX90mm YD5090-56-4N12.5P-R 19mm magnet Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 90*50mm YD5090-56-4N12.5P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD5090-56-4N12.5P-RDimension:50*90*28H mmCone Material:PaperEdge:Foam Nominal Power:3WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD5090-56-4N12.5P-R
  • Diameter: 50*90*28H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 90*50mm YD5090-56-4N12.5P-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD5090-56-4N12.5P-R

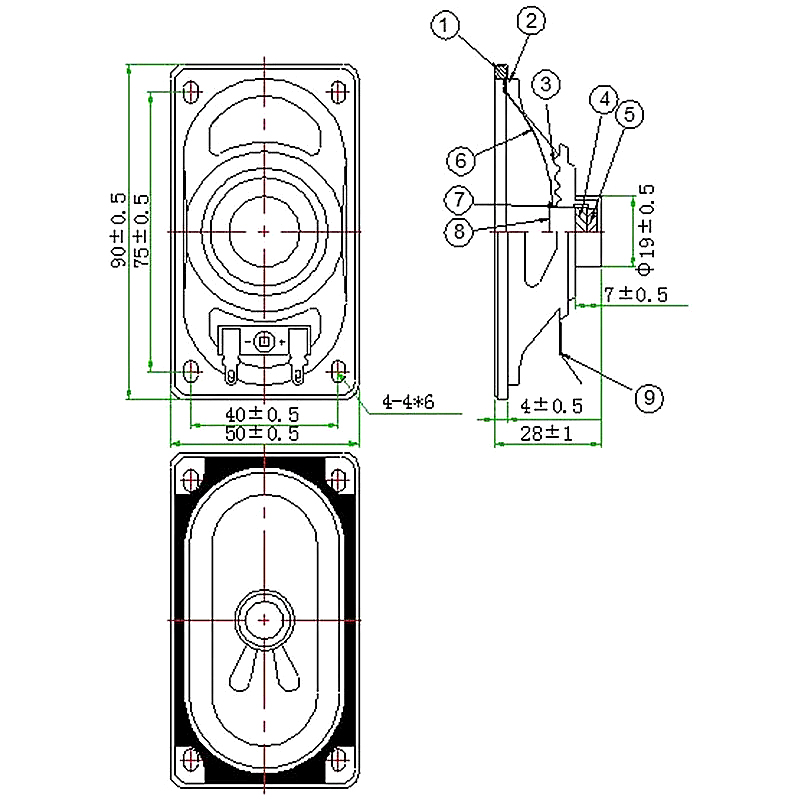

Dimension:50*90*28H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz
Response:Fo~15KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*3mm
Net weight:49g±8%
