Loudspeaker

Loudspeaker 50*90mm YD5090-57-8F32P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 50mmx90mm YD5090-57-8F32P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD5090-57-8F32P-RDimension:50*90*37.5H mmCone Material:PaperEdge:Foam Nominal Power:3WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD5090-57-8F32P-R
  • Diameter: 50*90*37.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mmx90mm YD5090-57-8F32P-R  Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD5090-57-8F32P-R

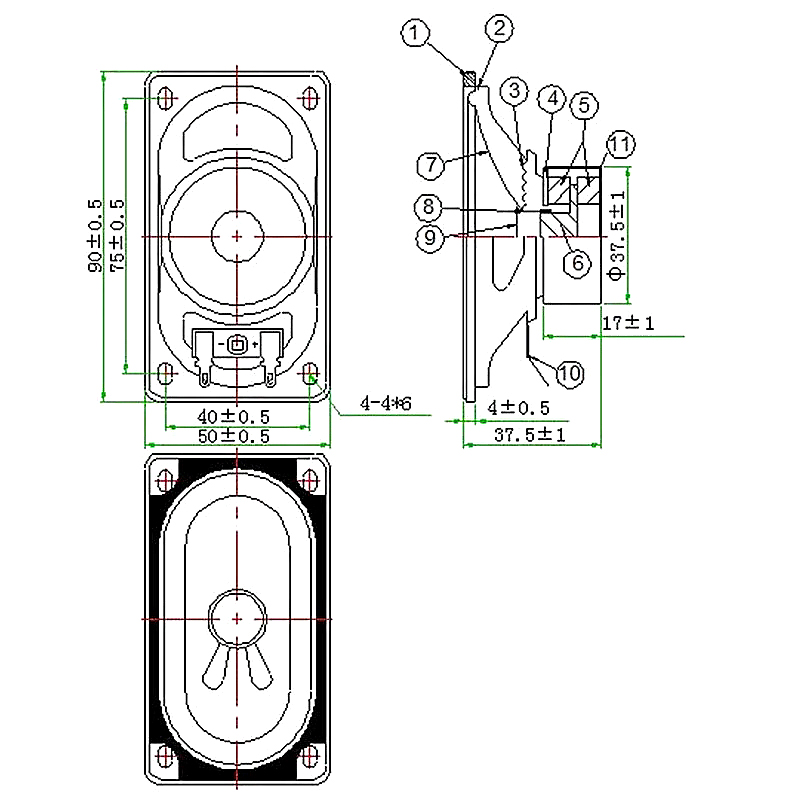

Dimension:50*90*37.5H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:5W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz

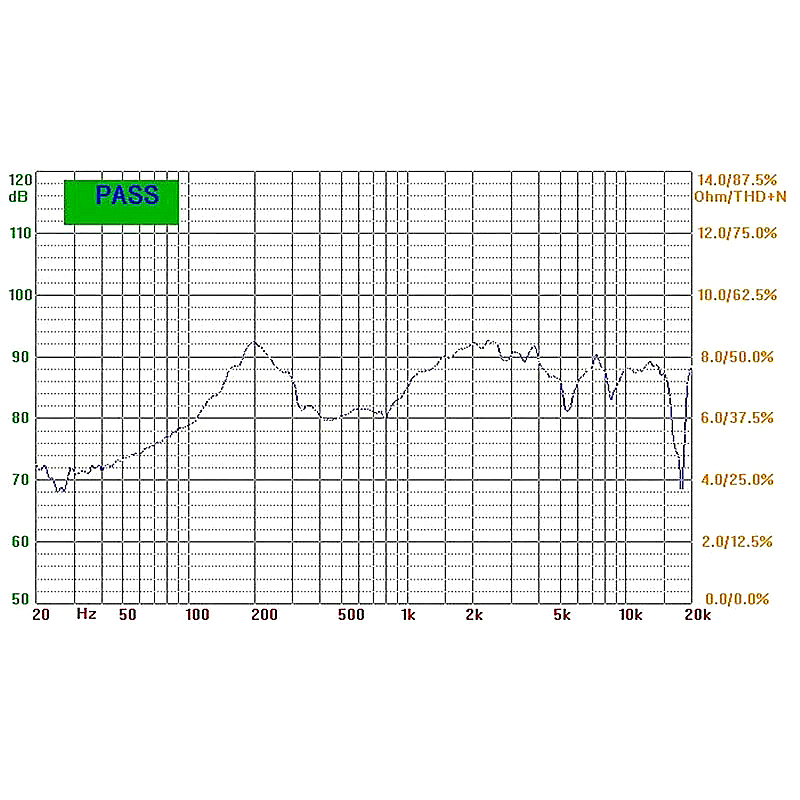

Response:Fo~20KHZ
S.P.L:84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:2-Φ32*18*6
Net weight:90g±8%
