Waterproof

waterproof spekaer YDP4070-2-8N12.5M-R 40*70mm 22mm magnet TV Speaker Unit

  • Model YDP4070-2-8N12.5M-RDiameter:Φ40mm*70mmCone Material:MylarEdge:MylarNominal Power:0.25wMaximum Power:0.5wImpedance:815%ΩVoice coil:Φ13.3mmFo:60020%HzResp

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YDP4070-2-8N12.5M-R

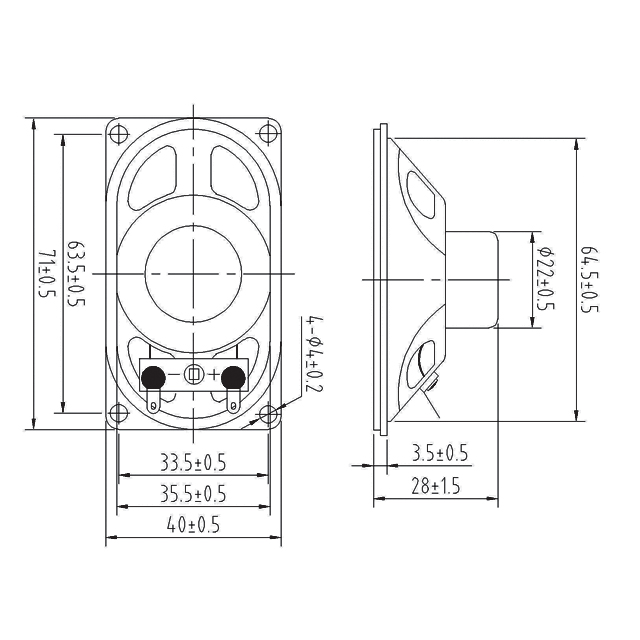

  • Diameter: Φ40mm*70mm
  • PDF
  • Description
  • Order

Product Description

Model              YDP4070-2-8N12.5M-R

Diameter:

Φ40mm*70mm

Cone Material:

Mylar

Edge:

Mylar

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

600±20%Hz

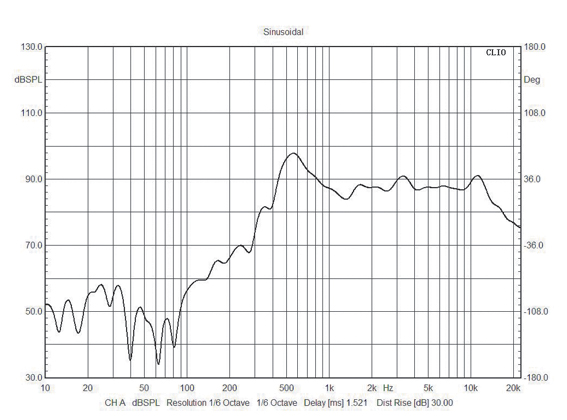

Response:

Fo-4.5kHz

S.P.L:

83±3dB/W/M

Magnet Size:

Φ12.5×2(NdFeB)

Net weight:

30g
