Loudspeaker

Loudspeaker YDP4070-2C-8N12.5C-R 70mm*40mm 4070 High Quality TV Speaker Drivers, Cheap Price Tv Speaker Components

  • Model YDP4070-2C-8N12.5C-RDiameter: 7140mmCone Material: PaperEdge: ClothNominal Power: 2WMaximum Power: 3WImpedance: 815%ΩFo: 35020%Hz Response: Fo-18kHz S.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YDP4070-2C-8N12.5C-R
  • Diameter: 71×40mm
  • Description
  • Order

Product Description

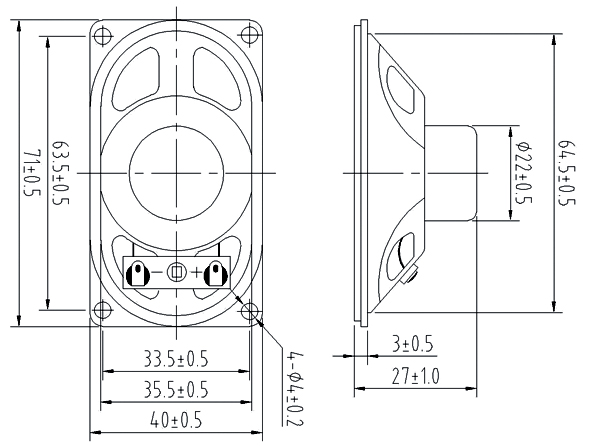

2

                         Model               YDP4070-2C-8N12.5C-R

Diameter:

71×40mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

2W

Maximum Power:

3W

Impedance:

8±15%Ω

Fo:

350±20%Hz

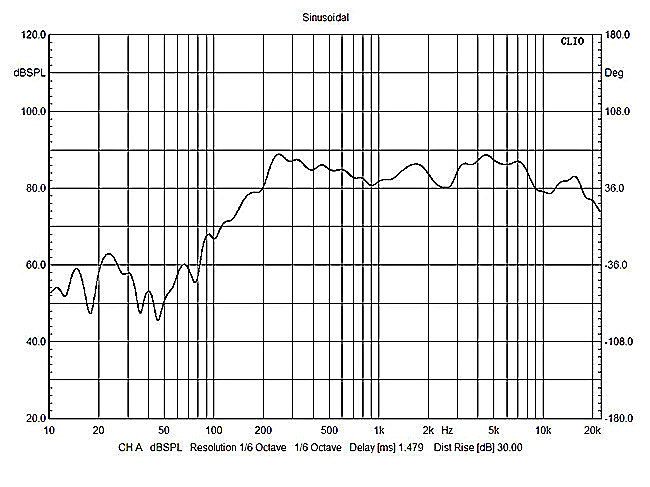

Response:

Fo-18kHz

S.P.L:

90±3dB/W/M

Magnet Size:

Φ12.5x2.5(NdFeB)

3
