Loudspeaker

Loudspeaker 30mmx70mm YD3070-02-8N12.5P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 30x70mm YD3070-02-8F12.5P-R Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD3070-02-8N12.5P-RDimension:30*70*18H mmCone Material:PU+PaperEdge:PaperNominal Power:3

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD3070-02-8N12.5P-R
  • Diameter: 30*70*18H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 30x70mm YD3070-02-8F12.5P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD3070-02-8N12.5P-R

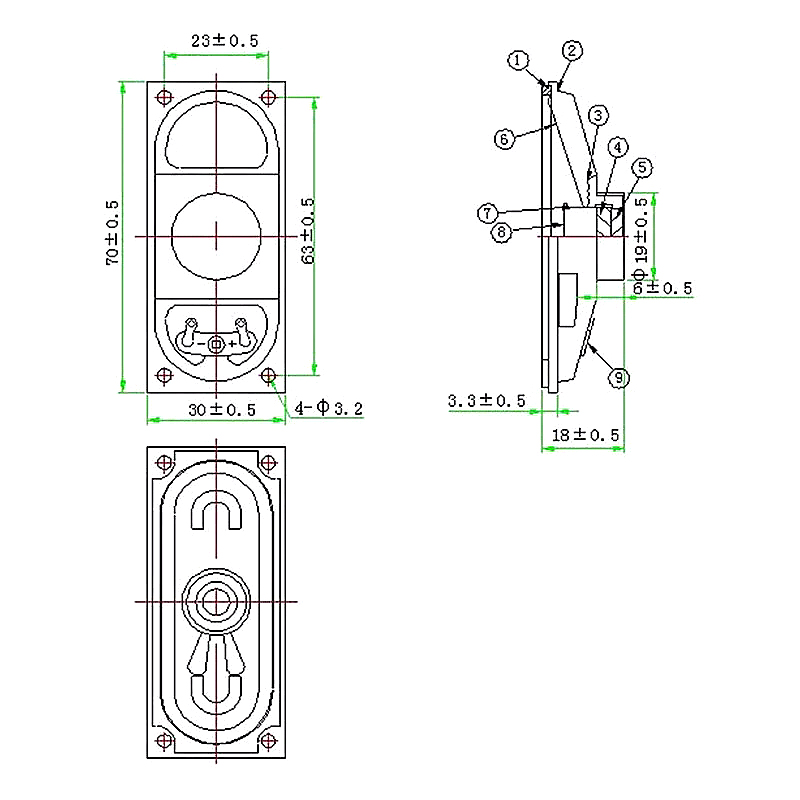

Dimension:30*70*18H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:420±20%Hz

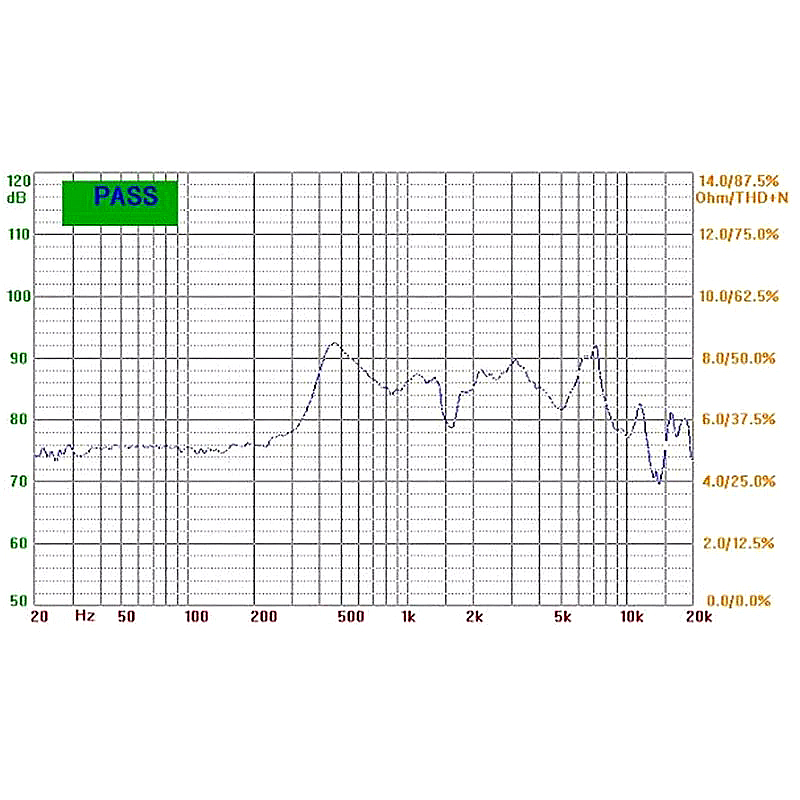

Response:Fo~10KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:22g±8%
