Loudspeaker

Loudspeaker 30mmx70mm YD3070-05-8N12.5M-R Min Full Range Waterproof Speaker Drivers

  • Loudspeaker 30*70mm YD30-05-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD3070-05-8N12.5M-RDimension:30*70*18H mmCone Material:PETEdge: PaperNominal Power:3WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD3070-05-8N12.5M-R
  • Diameter: 30*70*18H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 30*70mm YD30-05-8N12.5M-R Min Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD3070-05-8N12.5M-R

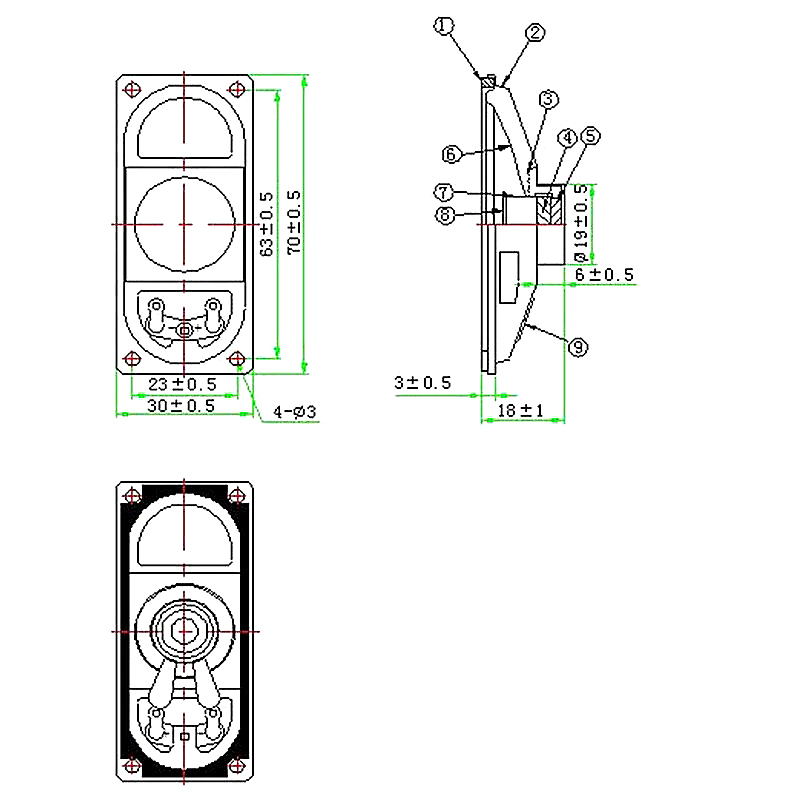

Dimension:30*70*18H mm
Cone Material:PET
Edge: Paper
Nominal Power:3W
Maximum Power:4W
Impedance:8Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:700±20%
Response:Fo~15KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.5mm
Net weight:23g±8%
