Loudspeaker YD1016-14-4F60 4x6 Inch 4ohm 15W Car Speaker Drivers Stereo Sound Used for Audio System Car Door Speaker High Quality Speaker Manufacturer

  • ModelYD1016-14-4F60Diameter: 103*155Cone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 25WImpedance: 415%ΩFo: 11520%HzResponse: Fo-15kHzS.P.L: 863dB/W/MMagnet Size: Φ60Φ258Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD1016-14-4F60

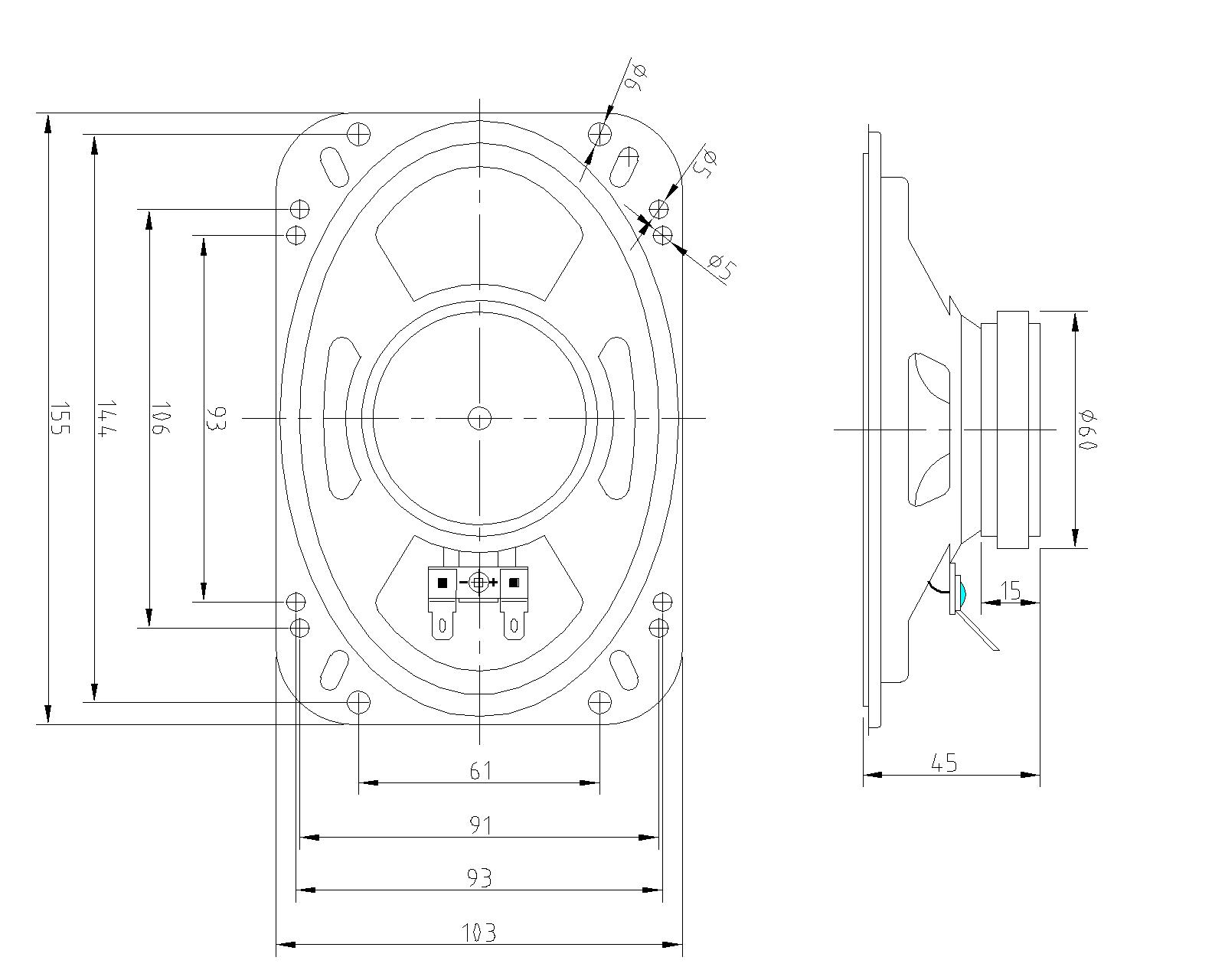

  • Diameter: 103*155
  • Description
  • Order

Product Description

YDT1016-14-4F60U-Model


ModelYD1016-14-4F60
Diameter: 103*155
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 25W
Impedance:  4±15%Ω
Fo: 115±20%Hz
Response: Fo-15kHz
S.P.L: 86±3dB/W/M
Magnet Size: Φ60×Φ25×8
Net weight:

YD1016-14-4F60U(马克波罗)-Q
