Car Speaker

Loudspeaker 168mm YD168-01-4F80P-R Min Full Range car Speaker Drivers

  • Loudspeaker 168mm YD168-01-4F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD168-01-4F80P-RDimension:Φ168*61H mmCone Material:InjectionEdge:RubberNominal Power:30WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD168-01-4F80P-R
  • Diameter: Φ168*61H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 168mm YD168-01-4F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

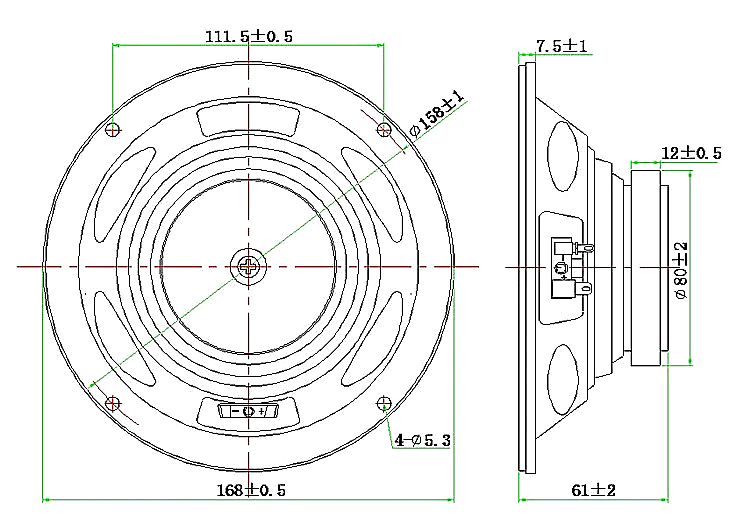

HC166T-1-R4-DRAWING

ModelYD168-01-4F80P-R
Dimension:Φ168*61H mm
Cone Material:Injection
Edge:Rubber
Nominal Power:30W
Maximum Power:45W
Impedance:4±15%Ω
Voice coil:Φ25.5mm ASV+Cu+13.28 ASV+Cu
Fo:70±20%Hz

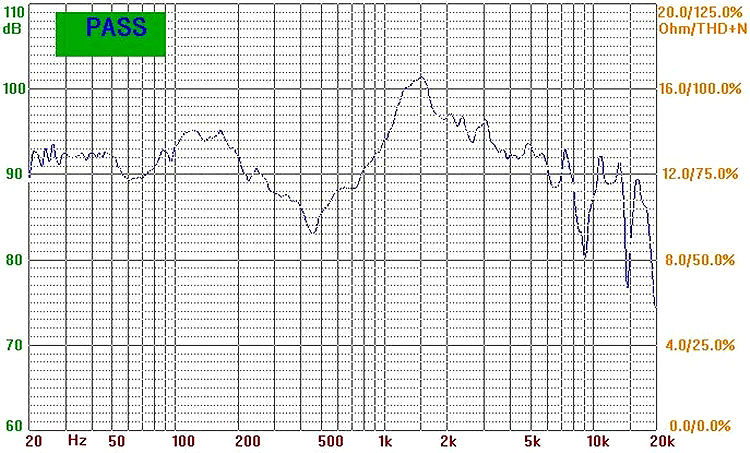

Response:Fo~20KHZ
S.P.L:88±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ80*40*12mm
Net weight:556g±8%
