Loudspeaker 166mm YD166-100-8F80P-R Min Full Range car Speaker Drivers

  • Loudspeaker 166mm YD166-100-8F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD166-100-8F80P-RDimension:Φ166*70H mmCone Material:PPEdge:RubberNominal Power:30WMaximum Power:50W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD166-100-8F80P-R
  • Diameter: Φ166*70H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 166mm YD166-100-8F80P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

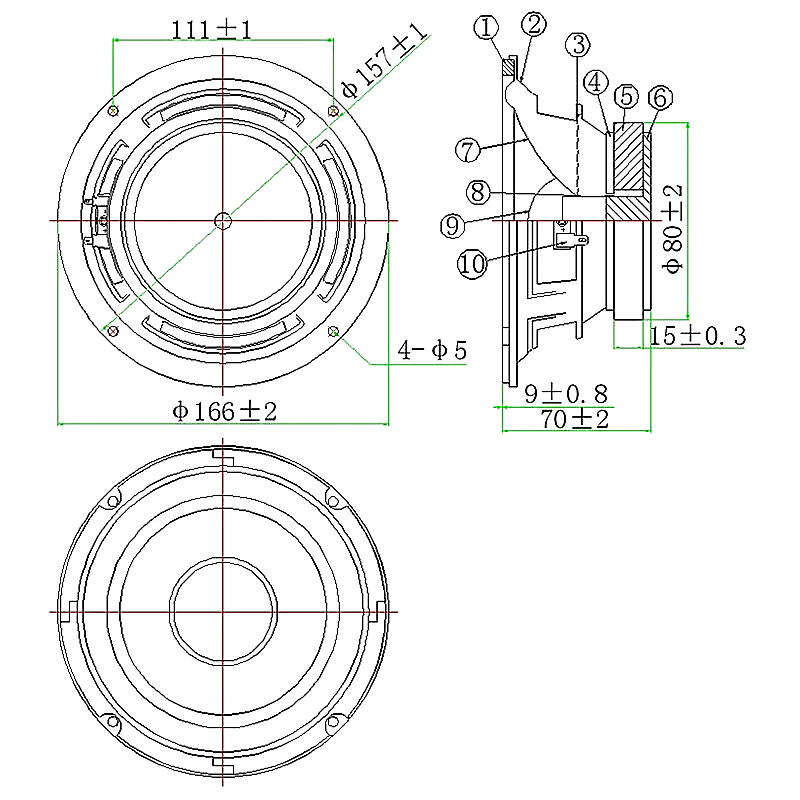

HC166W-10-R8-DRAWING

ModelYD166-100-8F80P-R
Dimension:Φ166*70H mm
Cone Material:PP
Edge:Rubber
Nominal Power:30W
Maximum Power:50W
Impedance:8±15%Ω
Voice coil:Φ25.5mm kSV+Cu
Fo:60±20%Hz

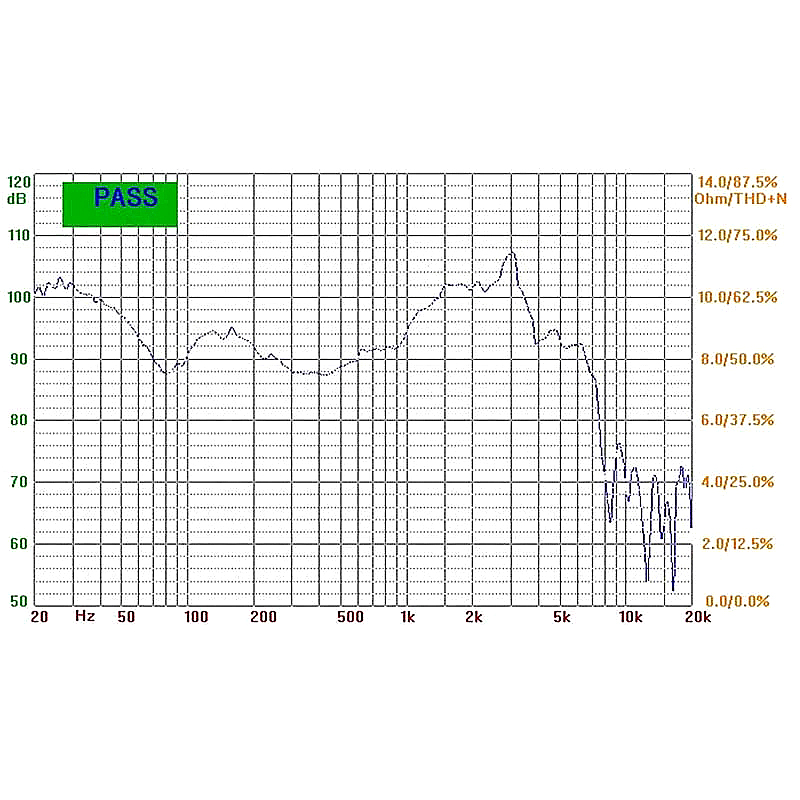

Response:Fo~9KHZ
S.P.L:94±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ80*32*15mm
Net weight:700g±8%
