Car Speaker

Loudspeaker YD158-77-8F65U-R 158mm 6 Inch 4ohm 20W Car Speaker Drivers Stereo Sound Used for Audio System Car Door Speaker High End Speaker Manufacturer

  • ModelYD158-77-8F65U-RDiameter: 158mmCone Material: PaperEdge: FoamNominal Power: 20WMaximum Power: 40WImpedance: 815%ΩFo: 7020%HzResponse: Fo-20kHzS.P.L: 883dB/W/MMagnet Size: Φ65Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD158-77-8F65U-R
  • Diameter: 158mm
  • Description
  • Order

Product Description

YD158-77-8F65U-R-Model


ModelYD158-77-8F65U-R
Diameter: 158mm
Cone Material: Paper
Edge: Foam
Nominal Power: 20W
Maximum Power: 40W
Impedance:  8±15%Ω
Fo: 70±20%Hz
Response: Fo-20kHz
S.P.L: 88±3dB/W/M

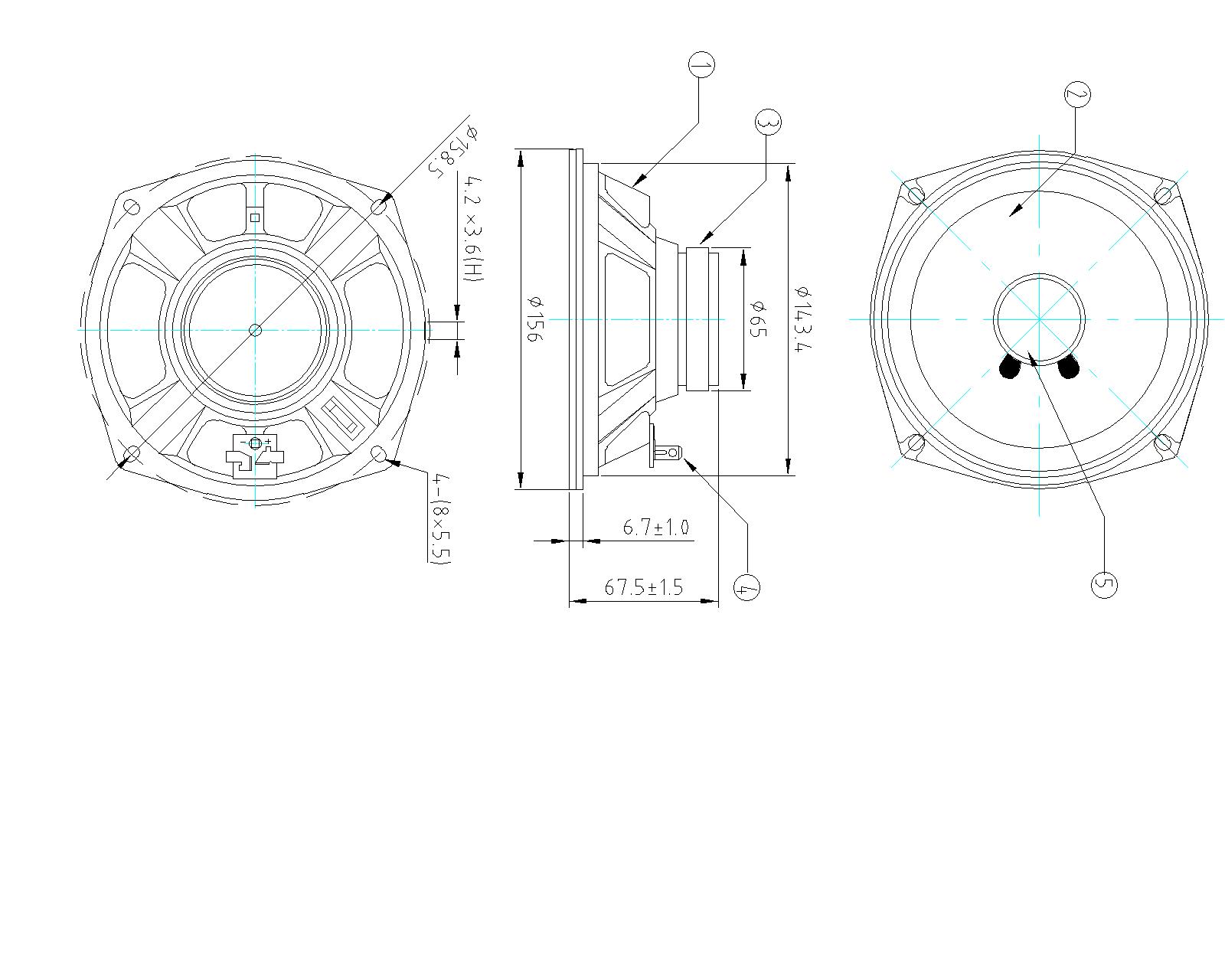

Magnet Size: Φ65×Φ32×10
Net weight:
