Car Speaker

Loudspeaker 158mm YD158-100F-8F75P-R Min Full Range car Speaker Drivers

  • Loudspeaker 158mm YD158-100F-8F75P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD158-100F-8F75P-RDimension:Φ158*68H mmCone Material:PPEdge:RubberNominal Power:20WMaximum Power:3

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD158-100F-8F75P-R
  • Diameter: Φ158*68H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 158mm YD158-100F-8F75P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD158-100F-8F75P-R

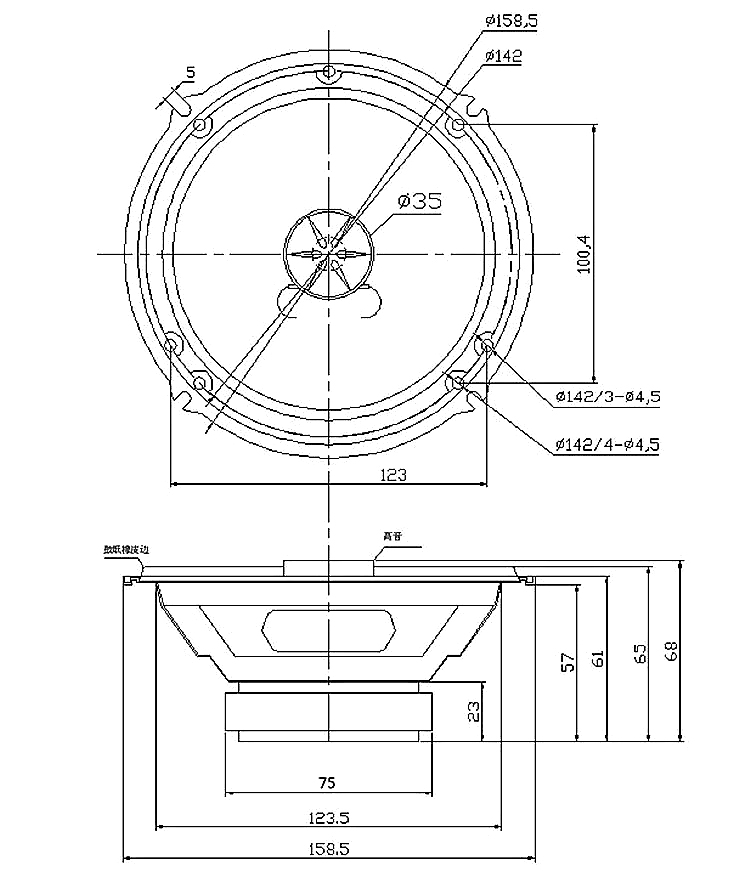

Dimension:Φ158*68H mm
Cone Material:PP
Edge:Rubber
Nominal Power:20W
Maximum Power:30W
Impedance:8±15%Ω
Voice coil:Φ25.5mm Aluminum
Fo:75±20%Hz

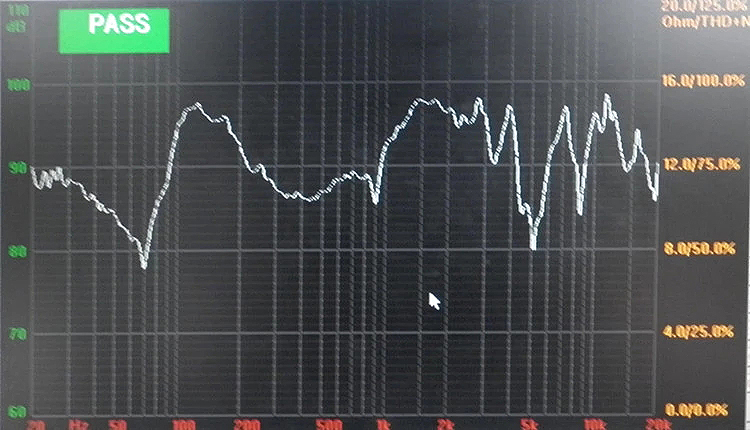

Response:Fo~20KHZ
S.P.L:90±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ75*40*12mm
Net weight:693g±8%
