Loudspeaker

Loudspeaker 45mm 2 Inch YD45-10-8N12.5P Min Full Range Super Loud Audio Speaker Drivers

  • Diameter:Φ45mmCone Material:PaperEdge:PaperNominal Power:0.25wMaximum Power:0.5wImpedance:815%ΩVoice coil:Φ13.3mmFo:65020%HzResponse:Fo-4.5kHz S.P.L:883dB/1.0W/0.5M Magnet Size:Φ12.53(NdFeB)Net weigh

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-10-8N12.5P
  • Diameter: Φ45mm
  • PDF
  • Description
  • Order

Product Description

未标题-2 拷贝

Diameter:

Φ45mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

650±20%Hz

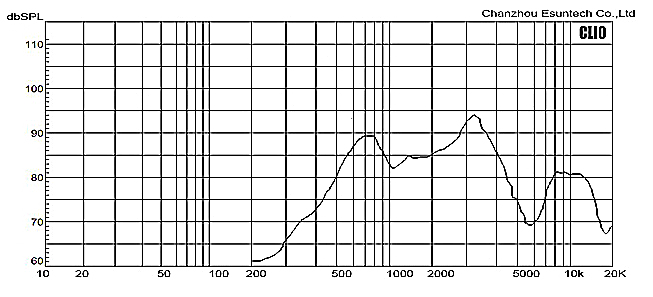

Response:

Fo-4.5kHz

S.P.L:

88±3dB/1.0W/0.5M

Magnet Size:

Φ12.5×3(NdFeB)

Net weight:

12.5g

3
