Loudspeaker

Loudspeaker 102mm YD102-16-4F70P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-16-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-16-4F70P-RDimension:102*102*41H mmCone Material:PlasticEdge:RubberNominal Power:20WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-16-4F70P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-16-4F70P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-16-4F70P-R

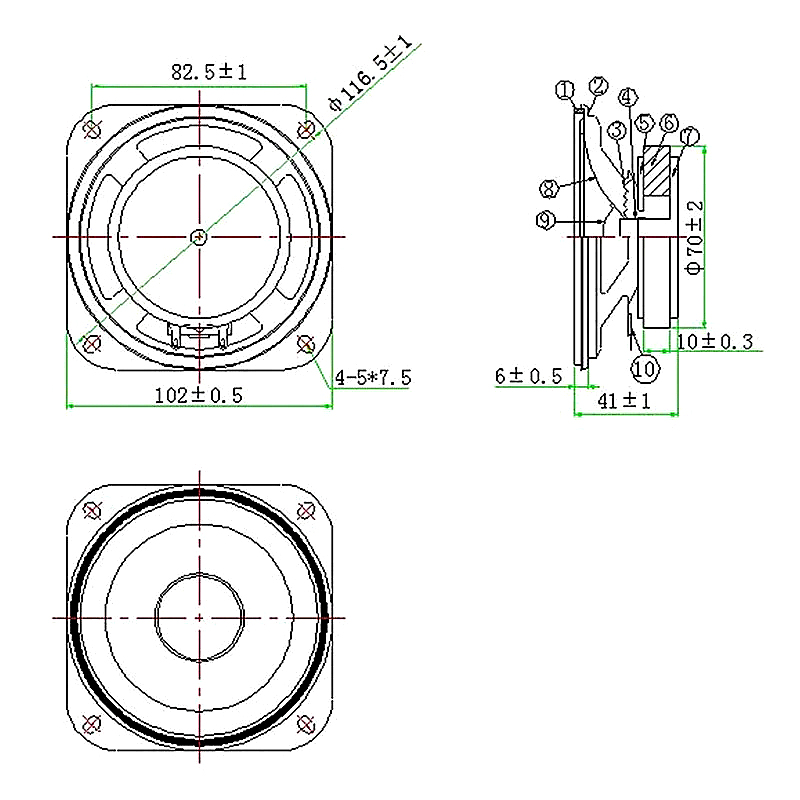

Dimension:102*102*41H mm
Cone Material:Plastic
Edge:Rubber
Nominal Power:20W
Maximum Power:25W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:100±20%Hz

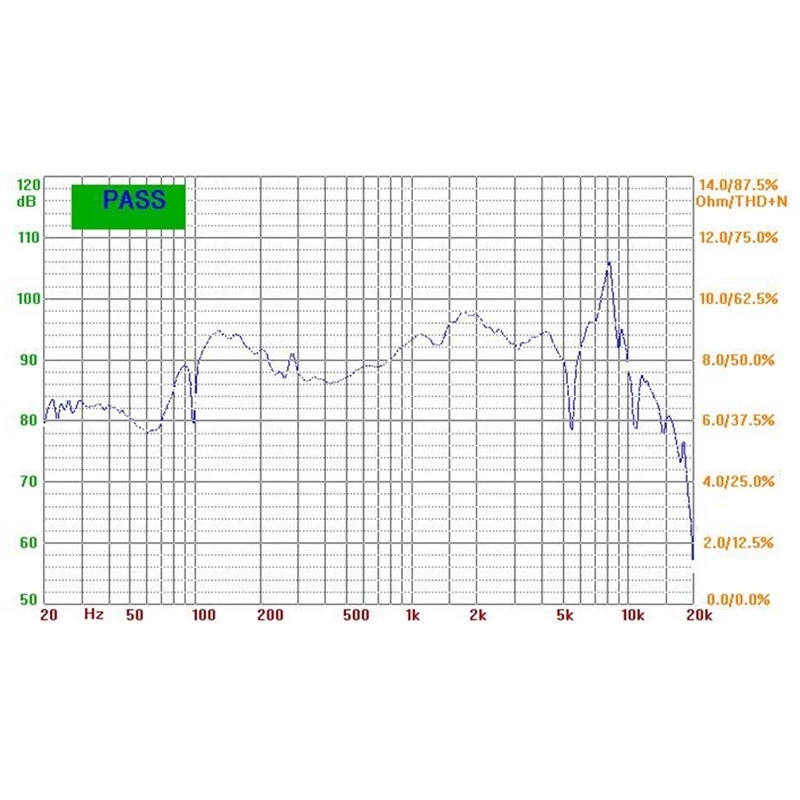

Response:Fo~10KHZ
S.P.L:92±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ70*32*10mm
Net weight:370g±8%
