Product Description

Loudspeaker 45mm YD45-05-16N12.5P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD45-05-16N12.5P-R

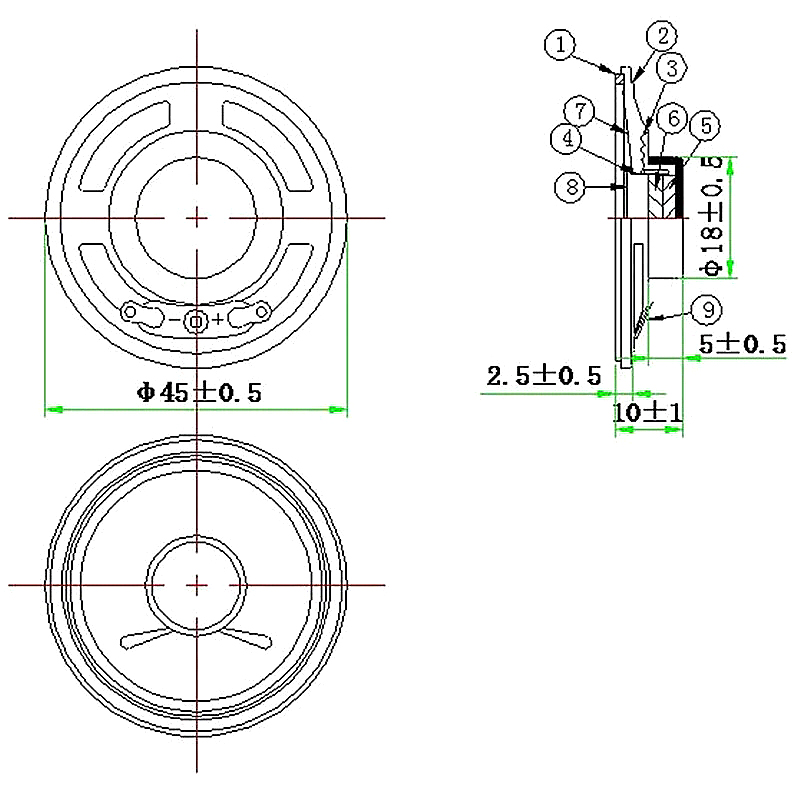

Dimension:Φ45*10H mm
Cone Material: Paper
Edge: Paper
Nominal Power:0.2W
Maximum Power:0.5W
Impedance:16Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:650±20%
Response:Fo~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:15g±8%
