Loudspeaker

Loudspeaker 45mm YD45-03-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 45mm YD45-03-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD45-03-4N15.5P-RDimension:Φ45*19H mmCone Material:PaperEdge:PUNominal Power:3WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-03-4N15.5P-R
  • Diameter: Φ45*19H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45mm YD45-03-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD45-03-4N15.5P-R

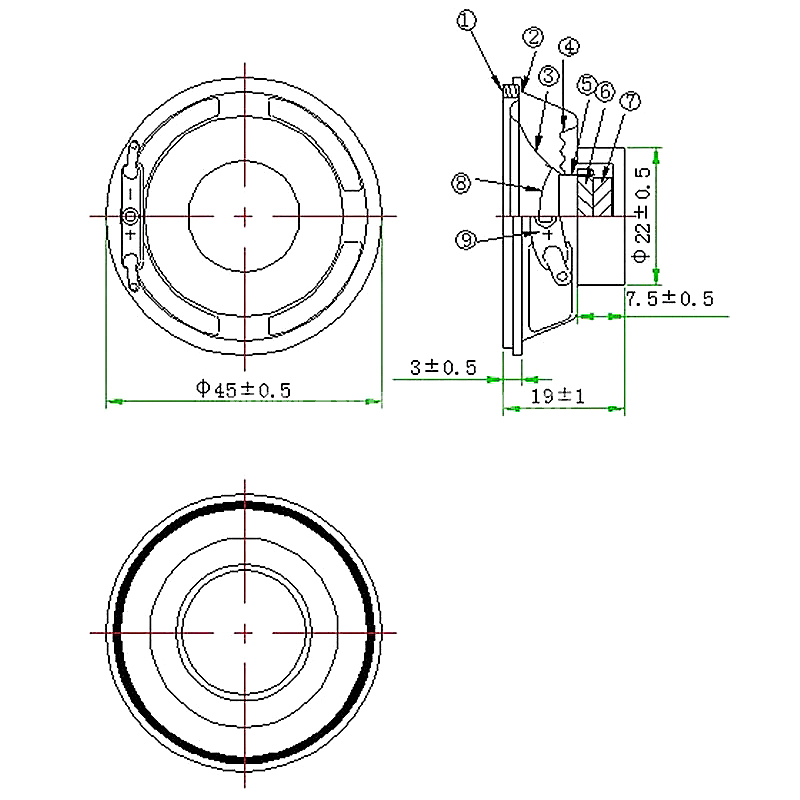

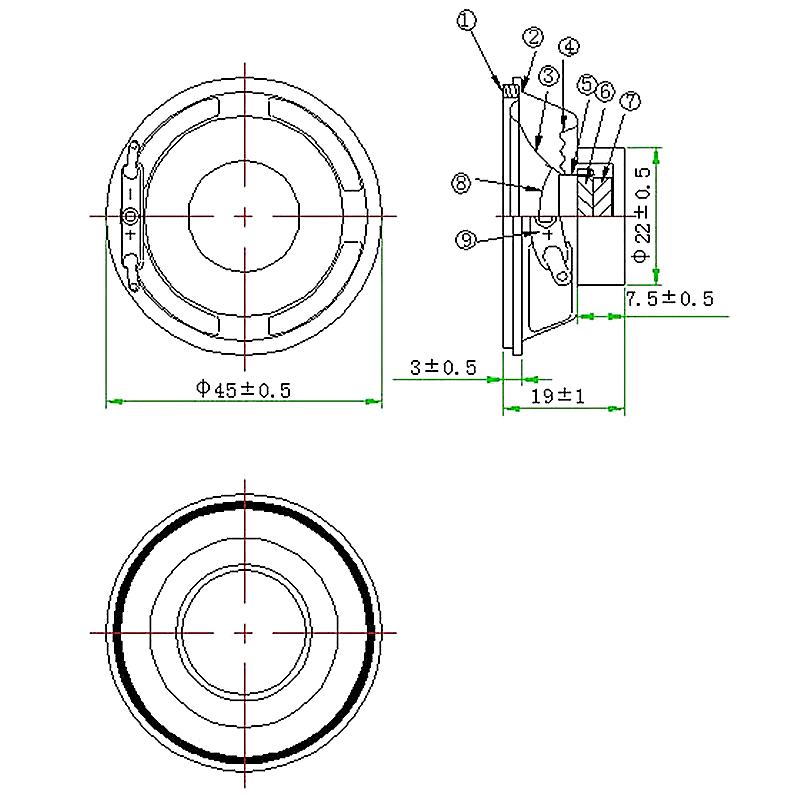

Dimension:Φ45*19H mm
Cone Material:Paper
Edge:PU
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:250±20%Hz

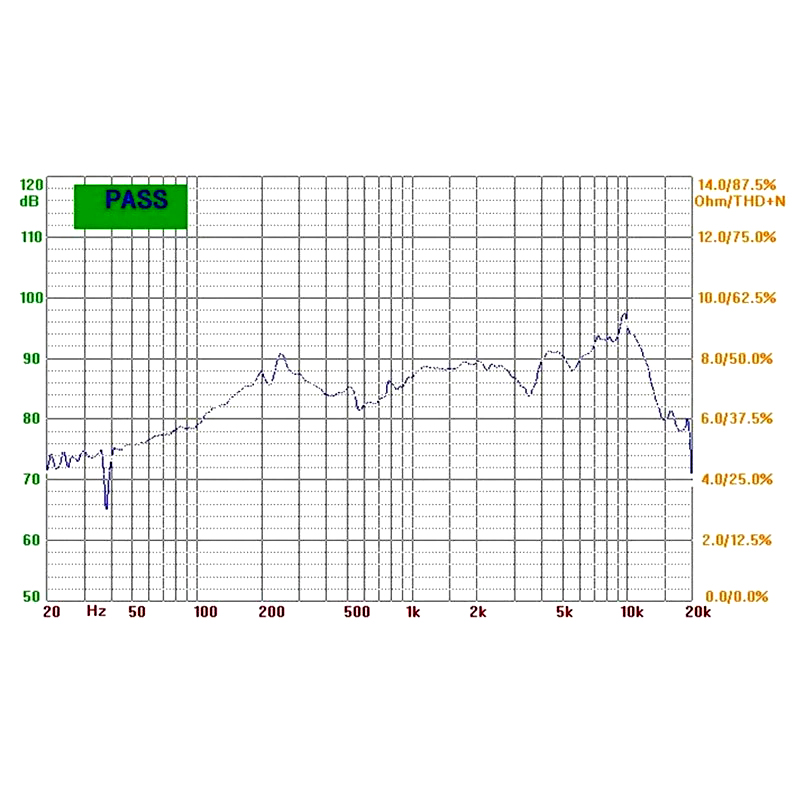

Response:Fo~18KHZ
S.P.L:86±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ15.5*4.0mm
Net weight:25g±8%
