Loudspeaker

Loudspeaker 66mm YD66-55-4F45P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 66mm YD66-55-4F45P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-55-4F45P-RDimension:66*66*33H mmCone Material: PaperEdge:Rubber Nominal Power:10WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-55-4F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-55-4F45P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD66-55-4F45P-R

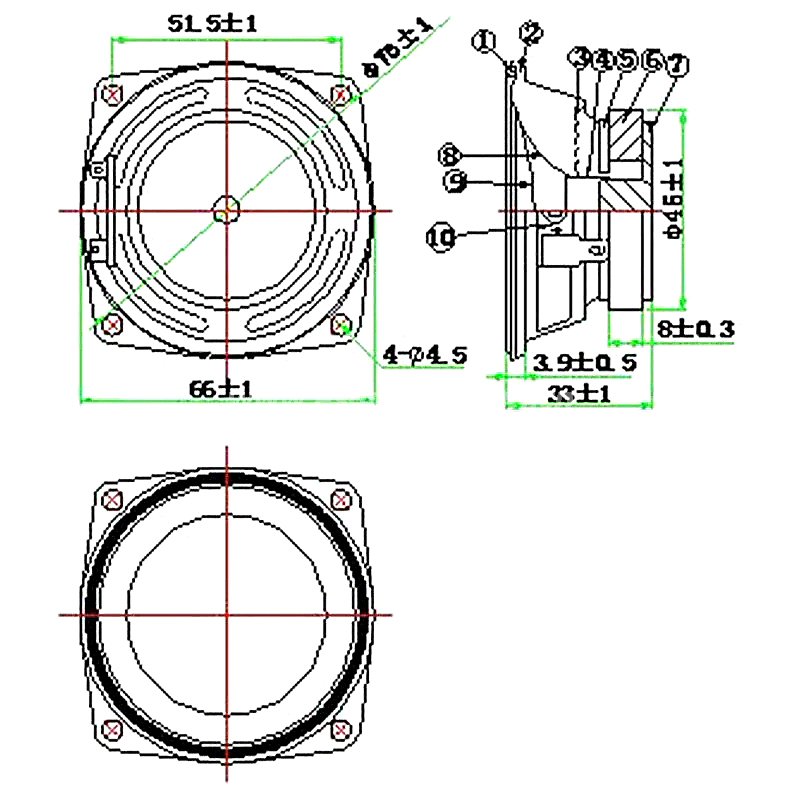

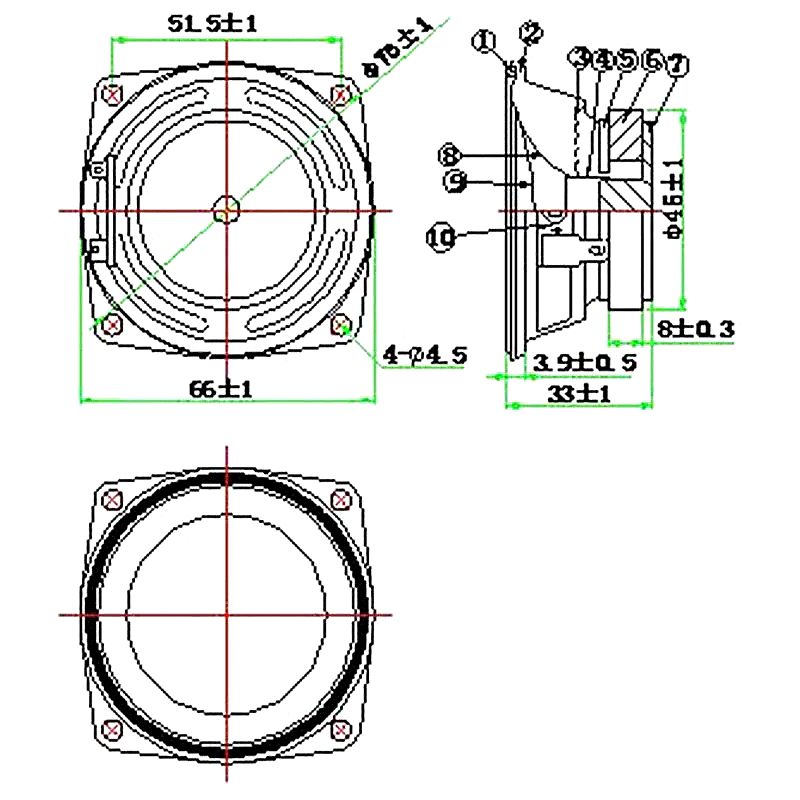

Dimension:66*66*33H mm
Cone Material: Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:4Ω±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:130±20%

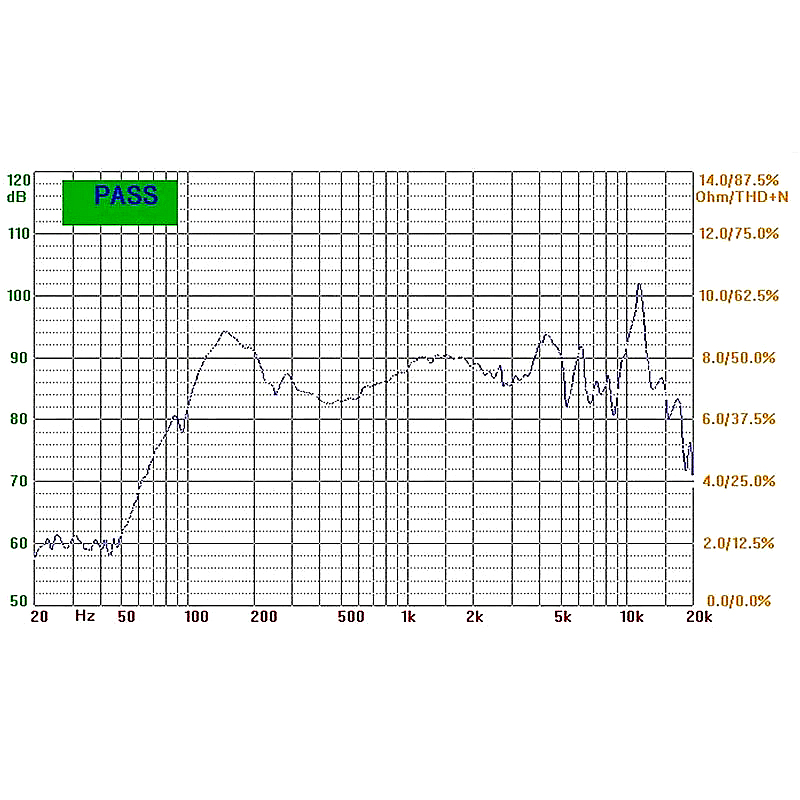

Response:Fo~15KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:114g±8%
