Product Description

Loudspeaker 50mm YD50-44-4N32P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD50-44-4N32P-R

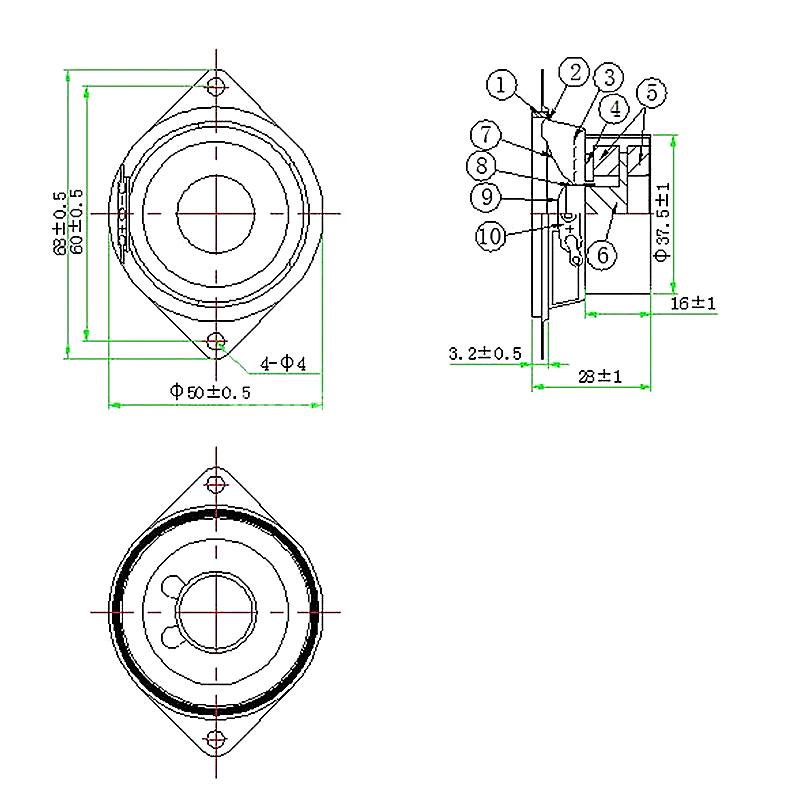

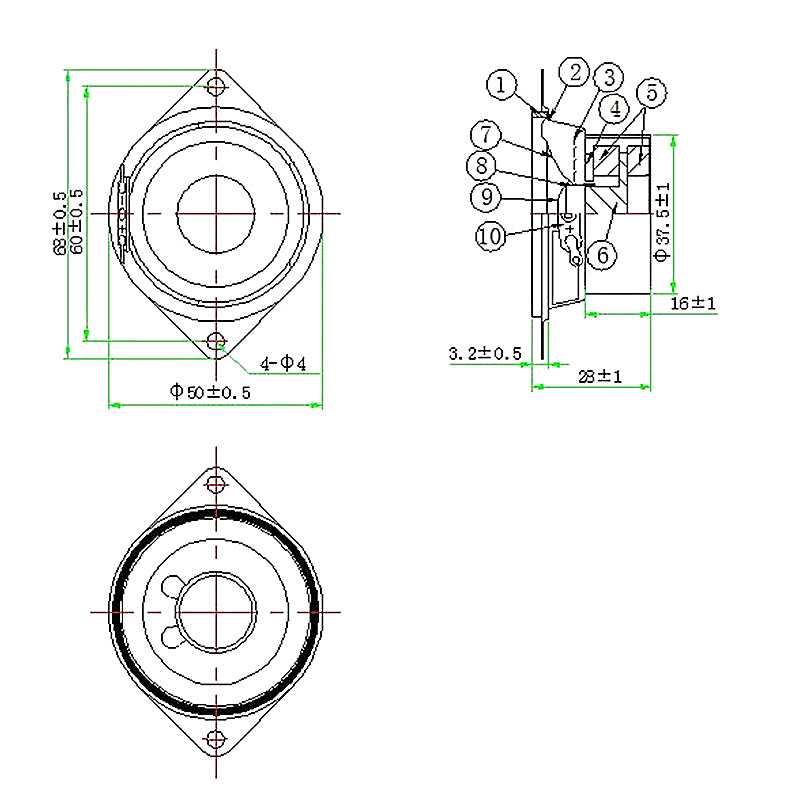

Dimension:50*68*28H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz

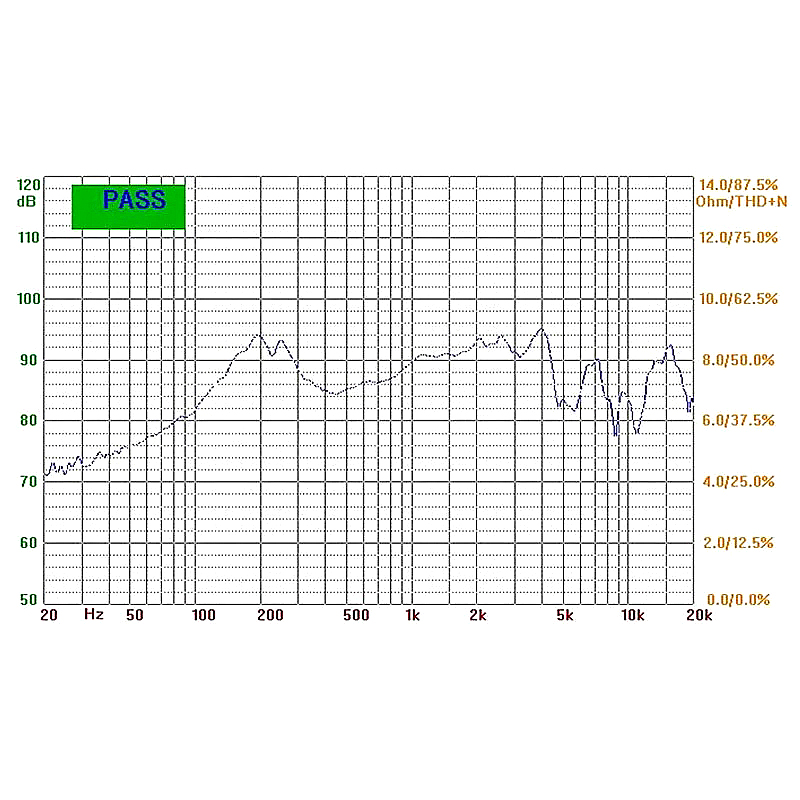

Response:Fo~20KHZ
S.P.L:89±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:2-Φ32*18*6mm
Net weight:75g±8%
