Product Description

Loudspeaker 78mm YD78-05-4F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD78-05-4F60P-R

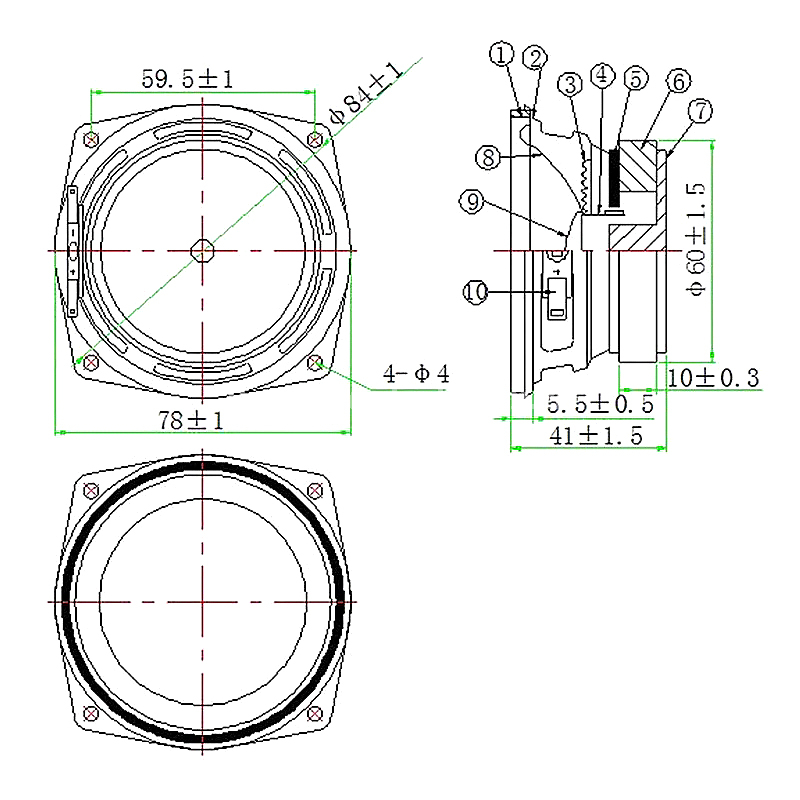

Dimension:78*78*41H mm
Cone Material: Paper
Edge:Rubber
Nominal Power:20W
Maximum Power:25W
Impedance:4Ω±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:110±20%

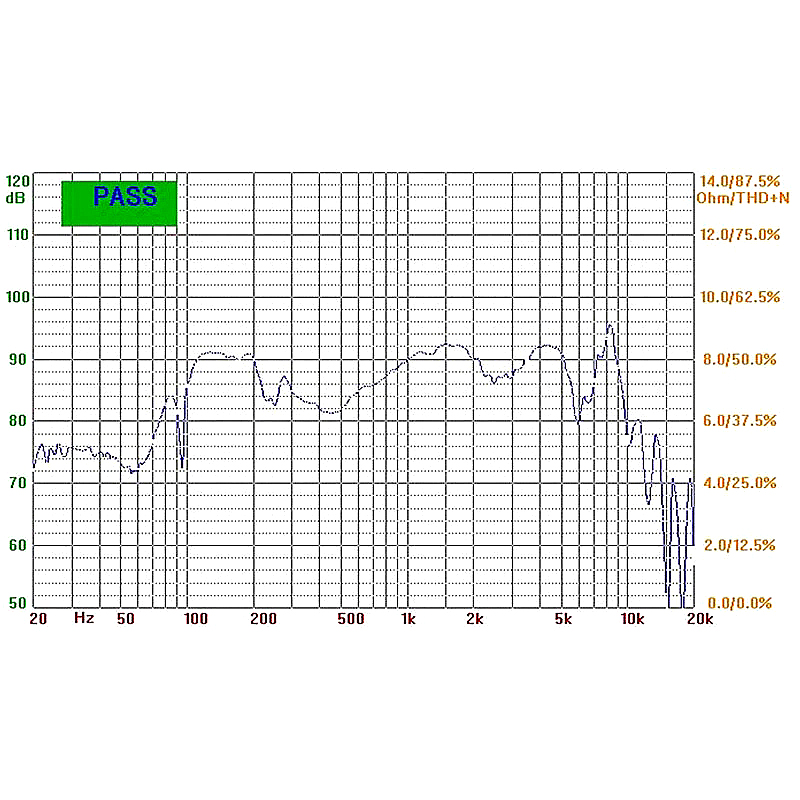

Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:240g±8%
