Loudspeaker

Loudspeaker 66mm YD66-40-4F45P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 66mm YD66-40-4F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-40-4F45P-RDimension:66*66*33H mmCone Material:PaperEdge:RubberNominal Power:10WMaximum Pow

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-40-4F45P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-40-4F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD66-40-4F45P-R

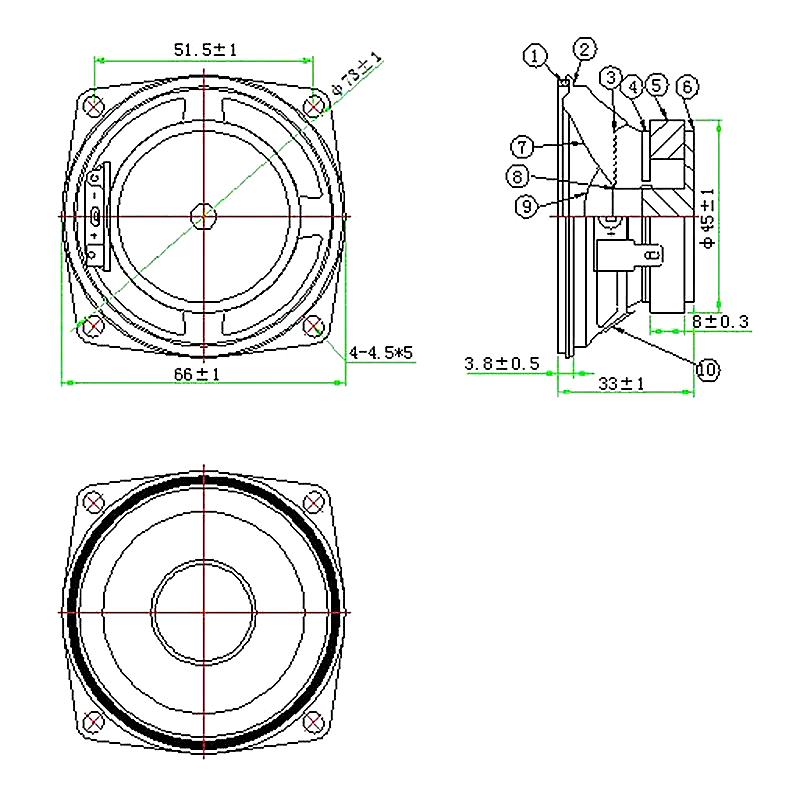

Dimension:66*66*33H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:4±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:150±20%Hz
Response:Fo~20KHZ
S.P.L:89±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8mm
Net weight:120g±8%
