Product Description

Loudspeaker 66mm YD66-37-8F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD66-37-8F45P-R

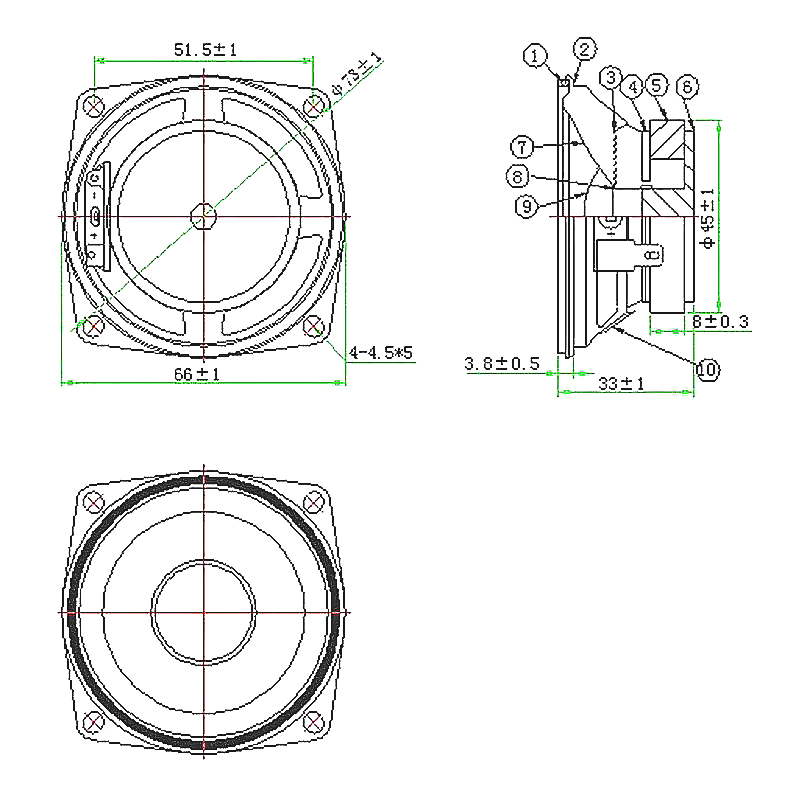

Dimension:66*66*33H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:130±20%Hz

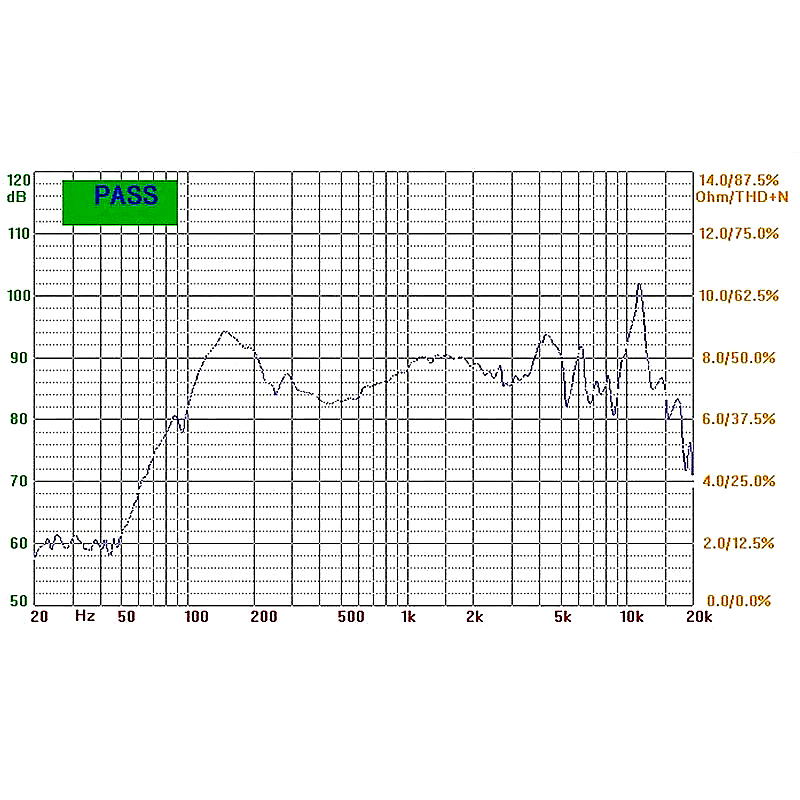

Response:Fo~15KHZ
S.P.L:87±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8mm
Net weight:114g±8%
