Loudspeaker

Loudspeaker YD50-10-8N12.5U 2 Inch 52mm Min Full Range Super Loud Audio Speaker Drivers

  • Model YD50-10-8N12.5UDiameter:Φ52mmCone Material:PaperEdge:FoamNominal Power:1wMaximum Power:2wImpedance:815%ΩVoice coil:Φ13.3mmFo:17520%HzResponse:Fo-10kHzS

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-10-8N12.5U

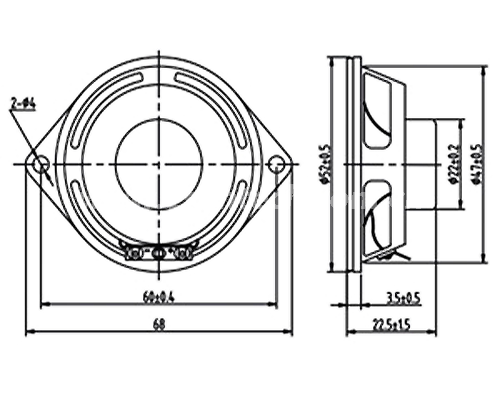

  • Diameter: Φ52mm*22.5mm
  • PDF
  • Description
  • Order

Product Description

2

                         Model                   YD50-10-8N12.5U

Diameter:

Φ52mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

1w

Maximum Power:

2w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

175±20%Hz

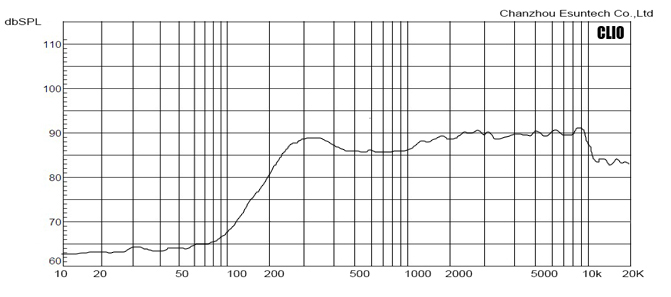

Response:

Fo-10kHz

S.P.L:

79±3dB/W/M

Magnet Size:

Φ12.5×3(NdFeB)

Net weight:

31.5g

3
