Medical Equipment Speaker

Loudspeaker 102mm YD102-26-4F60P-R Min Full Range Equipment Speaker Drivers

  • Loudspeaker 102mm YD102-26-4F60P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-26-4F60P-RDimension:102*102*37H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-26-4F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-26-4F60P-R Min Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD102-26-4F60P-R

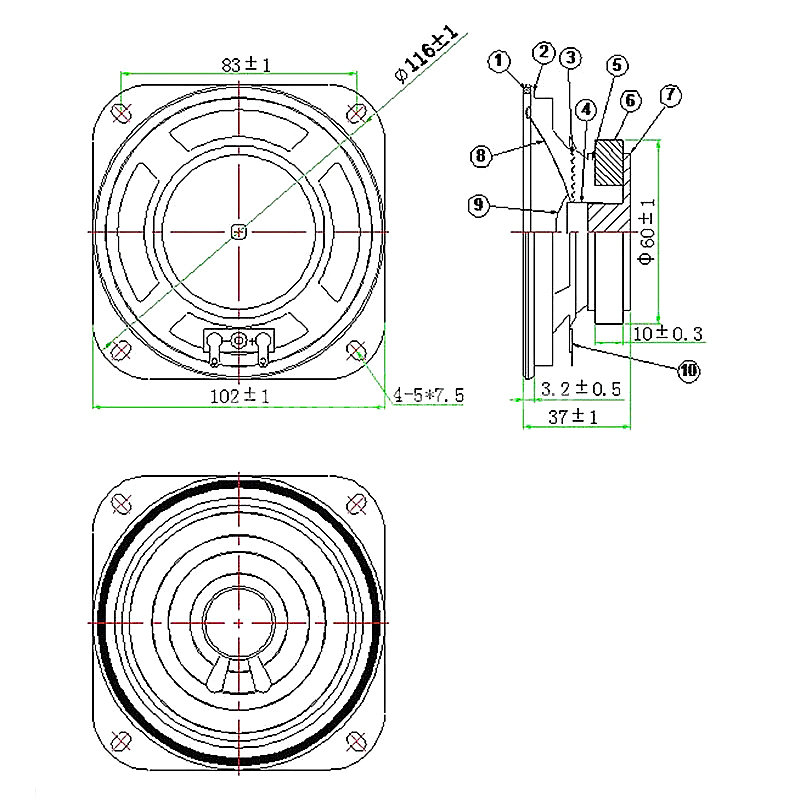

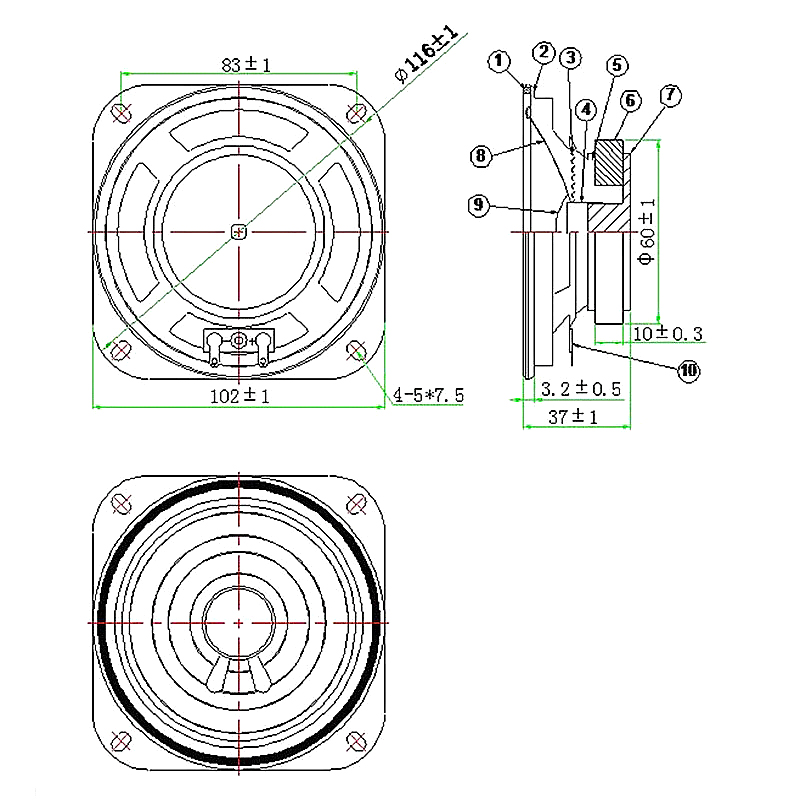

Dimension:102*102*37H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:4W
Impedance:4Ω±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:150±20%

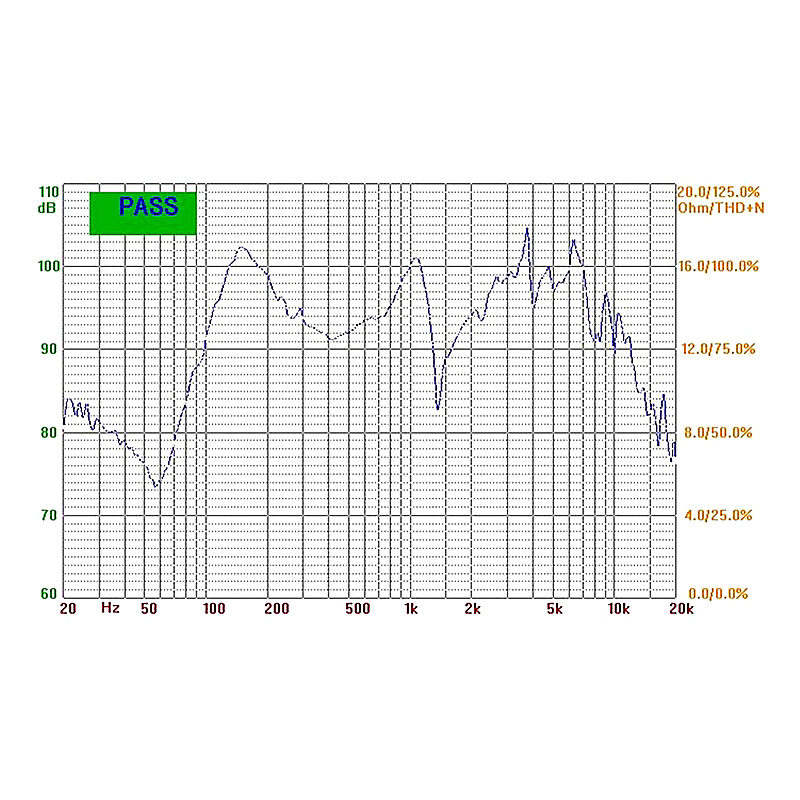

Response:Fo~10KHZ
S.P.L:96±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:225g±8%
