Product Description

Loudspeaker 50mm YD50-42-4N12.5P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-42-4N12.5P-R

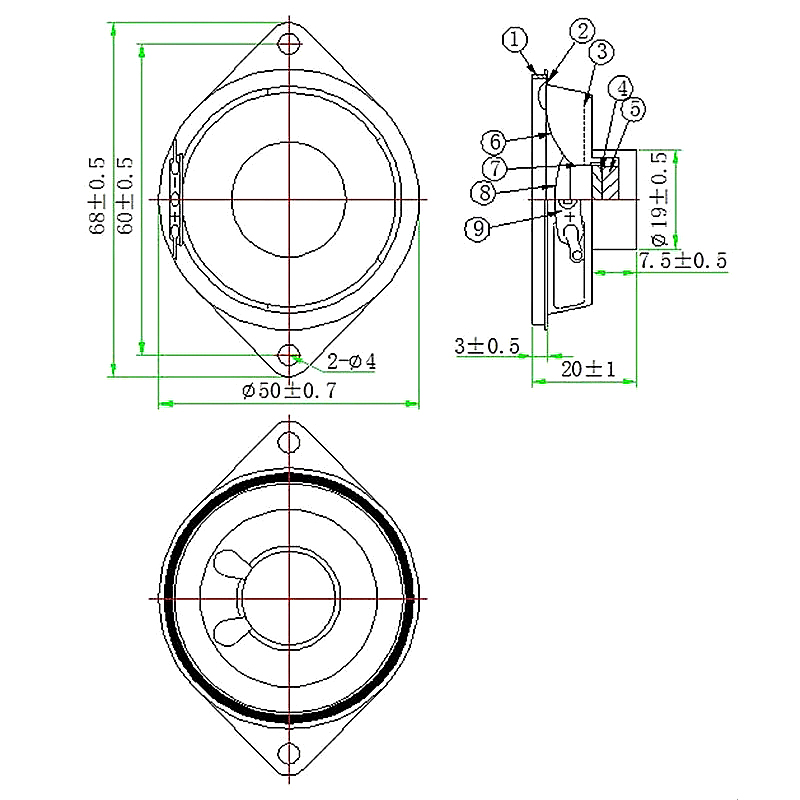

Dimension:Φ50*21H mm
Cone Material:Paper
Edge:Foam
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz
Response:Fo~18KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*3mm
Net weight:23g±8%
