Loudspeaker 102mm YD102-08-4F60P-R Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-08-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-08-4F60P-RDimension:102*102*35H mmCone Material:PaperEdge:FoamNominal Power:6WMaximum Power:7W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-08-4F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-08-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-08-4F60P-R

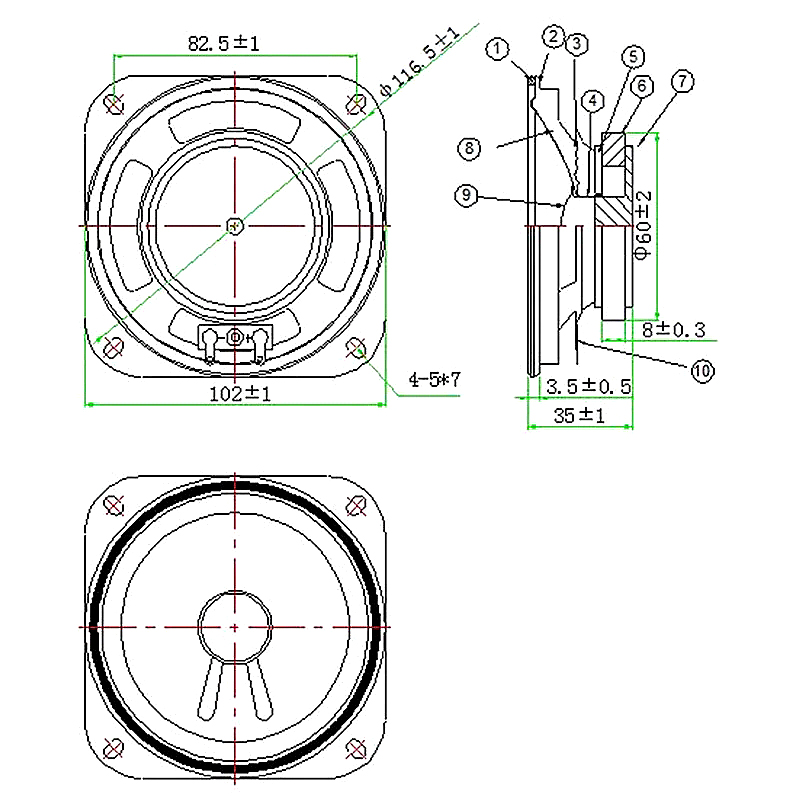

Dimension:102*102*35H mm
Cone Material:Paper
Edge:Foam
Nominal Power:6W
Maximum Power:7W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:120±20%Hz
Response:Fo~10KHZ
S.P.L:95±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:230g±8%
