Product Description

Loudspeaker 66mm YD66-38-4F45P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd

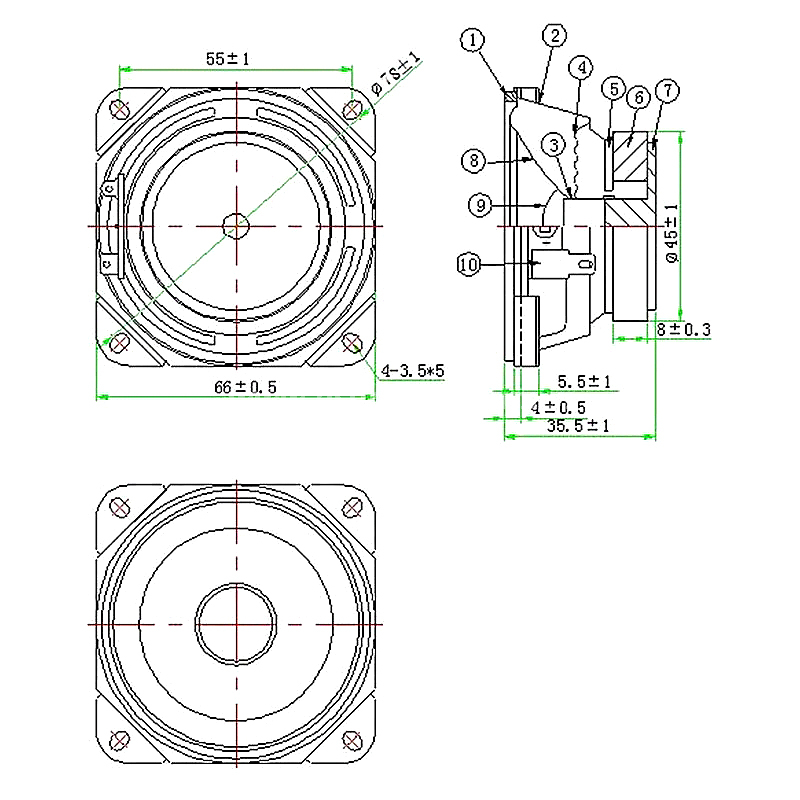

ModelYD66-38-4F45P-R
Dimension:66*66*35.5H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:4±15%Ω
Voice coil:Φ13.28mm ASV+Cu
Fo:170±20%Hz
Response:Fo~20KHZ
S.P.L:86±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*22*8mm
Net weight:125g±8%
